DTC B2286: Runnable Signal Malfunction; DTC P0335: Crankshaft Position Sensor Circuit Malfunction (NE Signal) [08/2015 - 08/2019]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Power Source Control or Starting Control / Data List.
5. According to the display on the Techstream, read the Data List.
   POWER SOURCE CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Engine Condition	Condition of engine/Stop or Run	Stop: Engine stopped Run: Engine running	-

   STARTING CONTROL



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Engine Speed	Engine speed/0 to 16383 r/min	Changes according to engine speed	-

   OK

   The Data List item changes in accordance with the engine condition.

Result:

OK

GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] )

Result:

NG

See step  2

See step  1

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR IN CIRCUIT CONNECTED TO POWER SOURCE

Result:

OK

See step  3

See step  2

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Disconnect the G38 power management control ECU connector.
2. Disconnect the G45 ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   G38-4 (NE) - G45-35 (NEO)	Always	Below 1 Ω
   G38-4 (NE) or G45-35 (NEO) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

1. Reconnect the power management control ECU connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

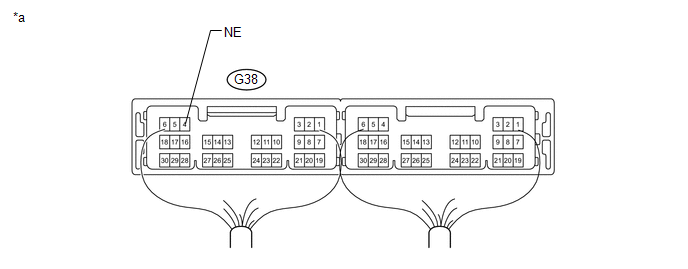

   TEXT IN ILLUSTRATION



   *a

   Component with harness connected (Power Management Control ECU)

   -

   -

2. Check the engine speed input signal waveform at the terminal of the power management control ECU.

   Standard Frequency

   Tester Connection	Condition	Specified Condition
   G38-4 (NE) - Body ground	Engine stopped	No pulse generated
   	Engine running	Pulse generated

Result:

OK

REPLACE POWER MANAGEMENT CONTROL ECU

(Refer to REMOVAL [08/2015 - 08/2019] )

Result:

NG

GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2015 - ] )
