Components [08/2015 - ]

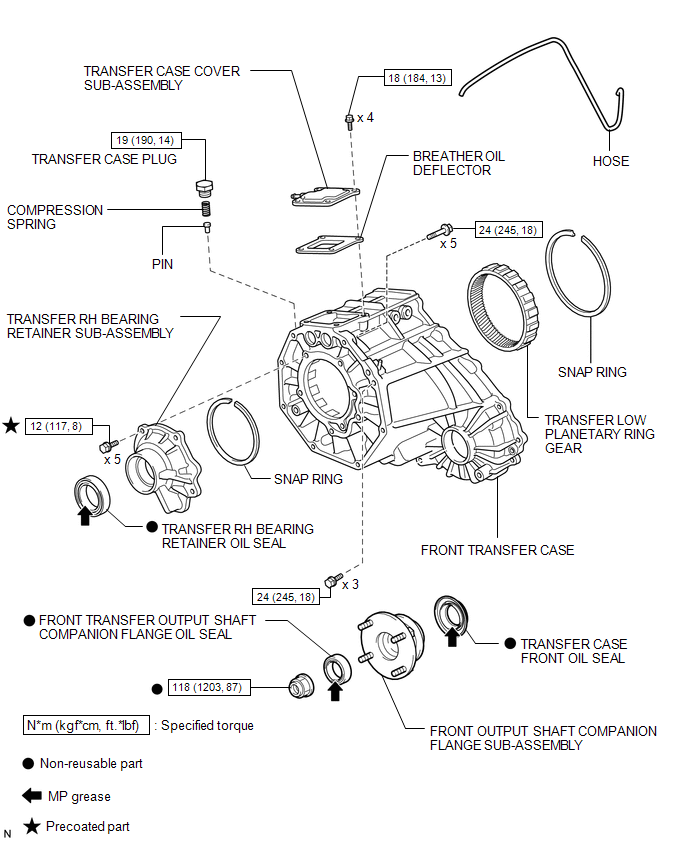

Fig 1: Transfer Assembly Replacement Components With Torque Specifications (1 Of 8)
GTY679886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

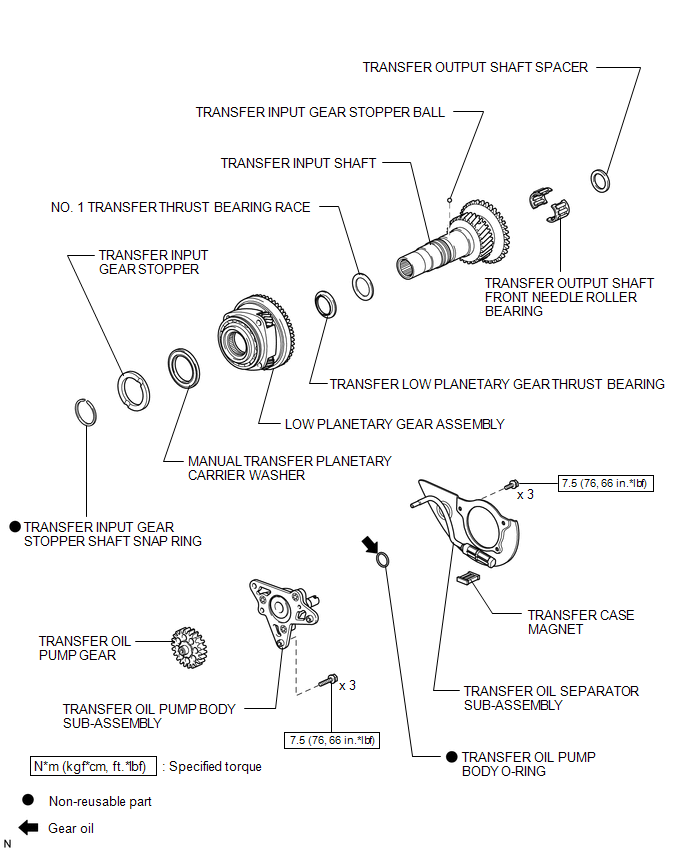

Fig 2: Transfer Assembly Replacement Components With Torque Specifications (2 Of 8)
GTY653107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

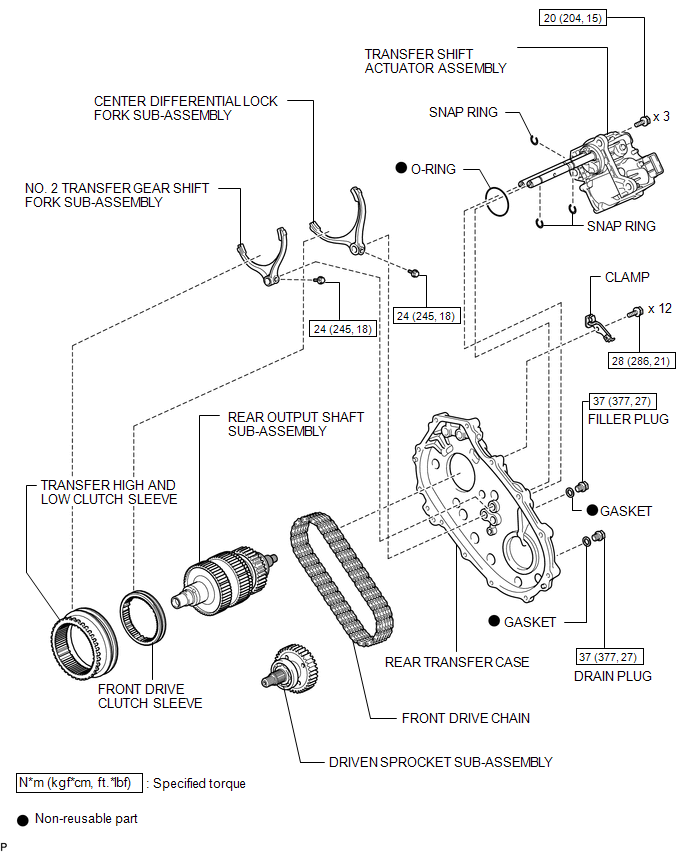

Fig 3: Transfer Assembly Replacement Components With Torque Specifications (3 Of 8)
GTY653747Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

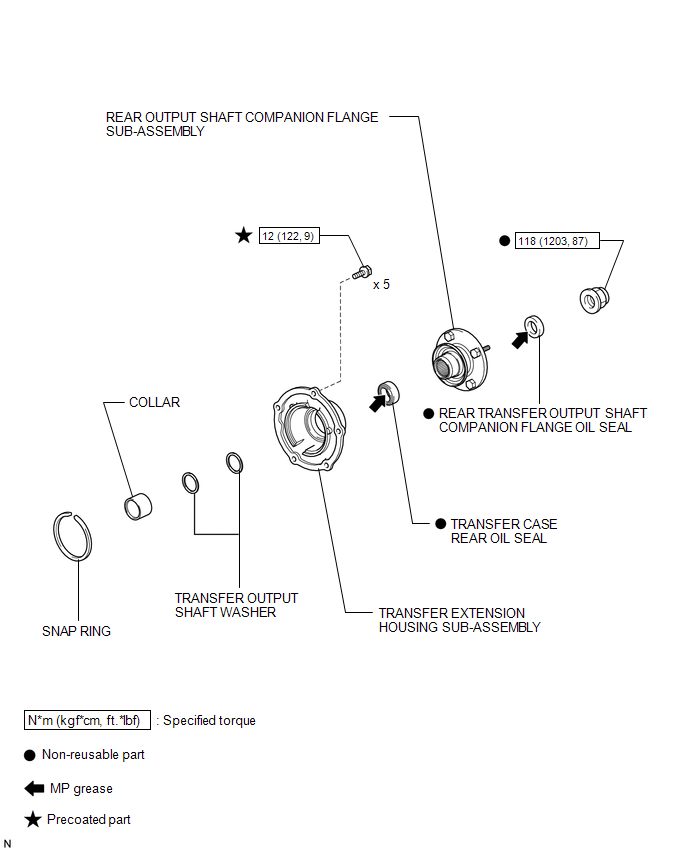

Fig 4: Transfer Assembly Replacement Components With Torque Specifications (4 Of 8)
GTY670162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

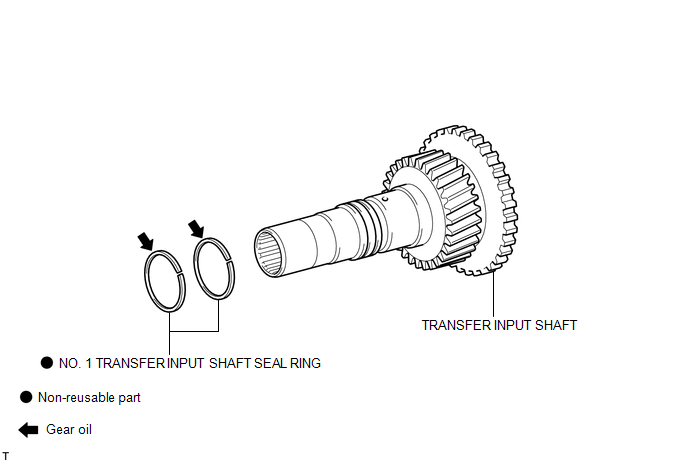

Fig 5: Transfer Assembly Replacement Components (5 Of 8)
GTY634817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

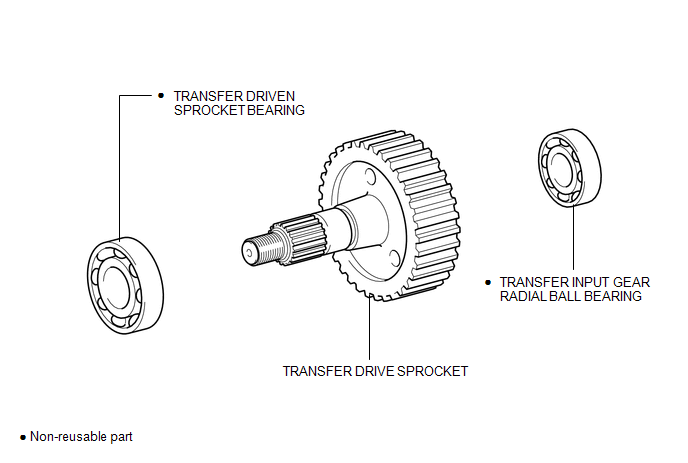

Fig 6: Transfer Assembly Replacement Components (6 Of 8)
GTY620965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

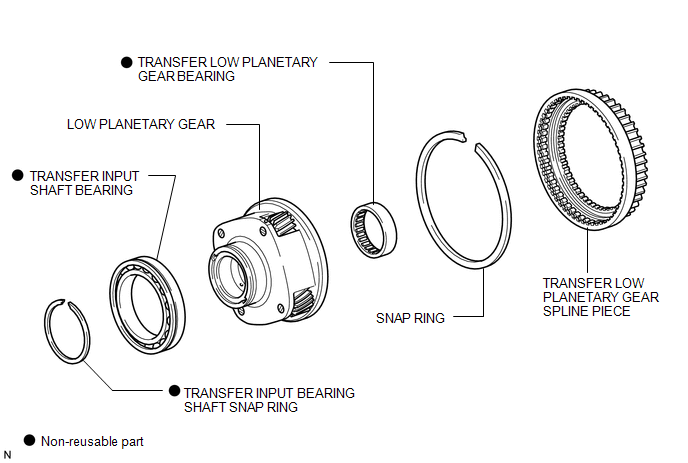

Fig 7: Transfer Assembly Replacement Components (7 Of 8)
GTY654227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

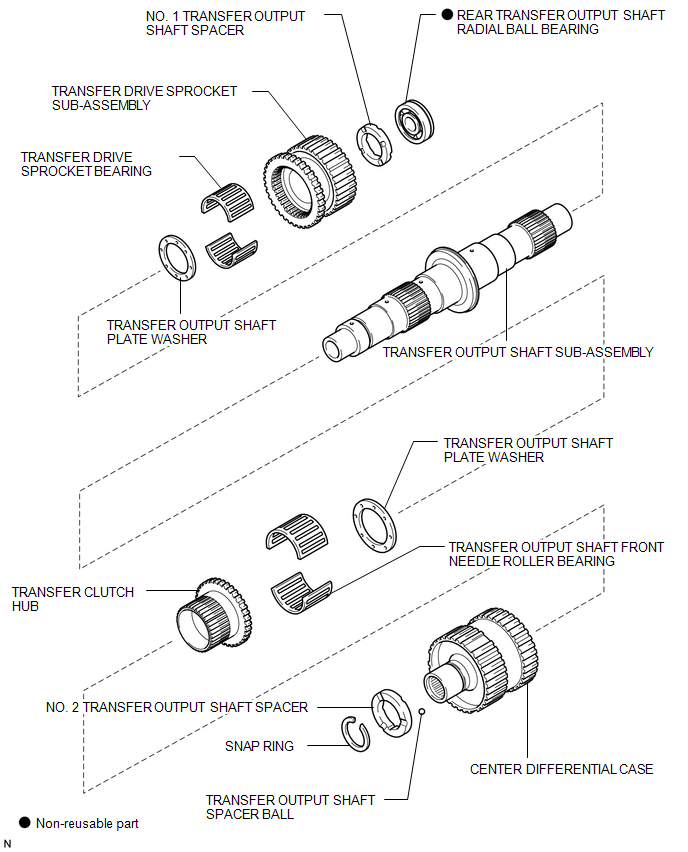

Fig 8: Transfer Assembly Replacement Components (8 Of 8)
GTY647139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
