Automatic Headlight Beam Level Control System - Diagnostics - Introduction
>>
Automatic Headlight Beam Level Control System
>>
System Diagram [04/2013 - 10/2016]
>>
System Diagram [04/2013 - 10/2016]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [04/2013 - 10/2016]

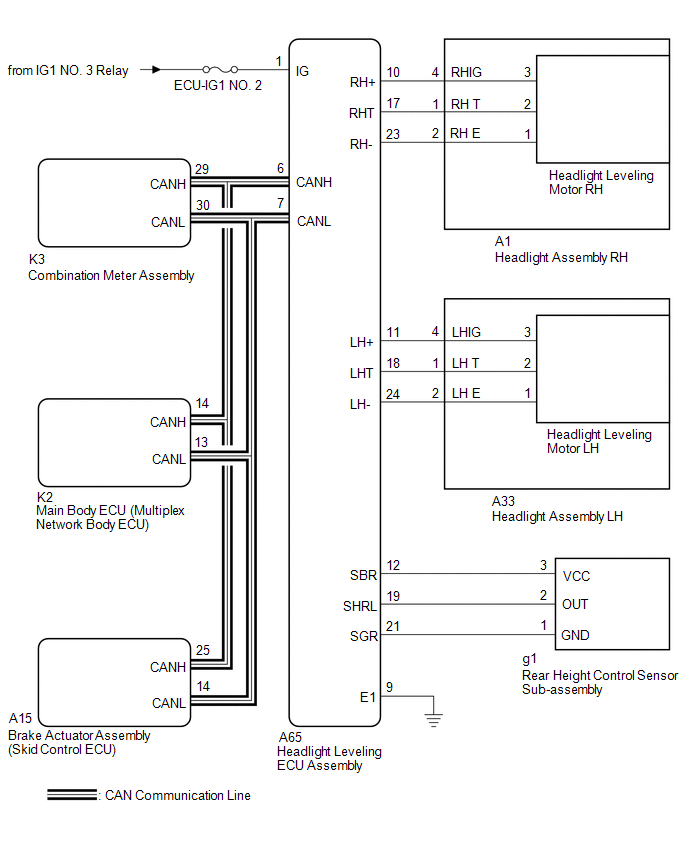

Fig 1: Automatic Headlight Beam Level Control System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
