System Diagram [01/2017 - 05/2023]

SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)

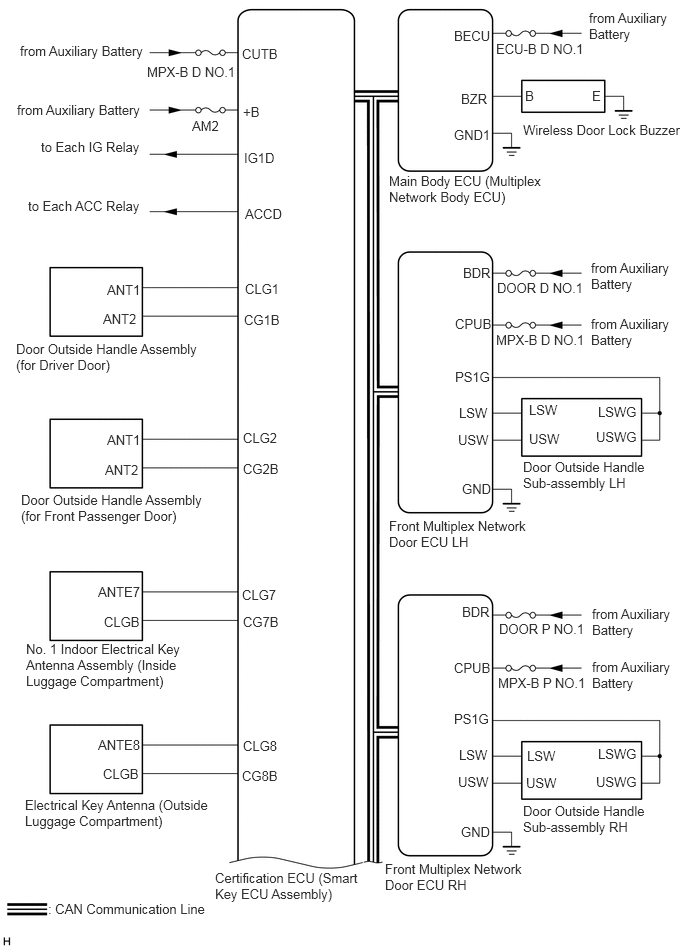

Fig 1: Smart Access System With Push-Button Start - For Entry - Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

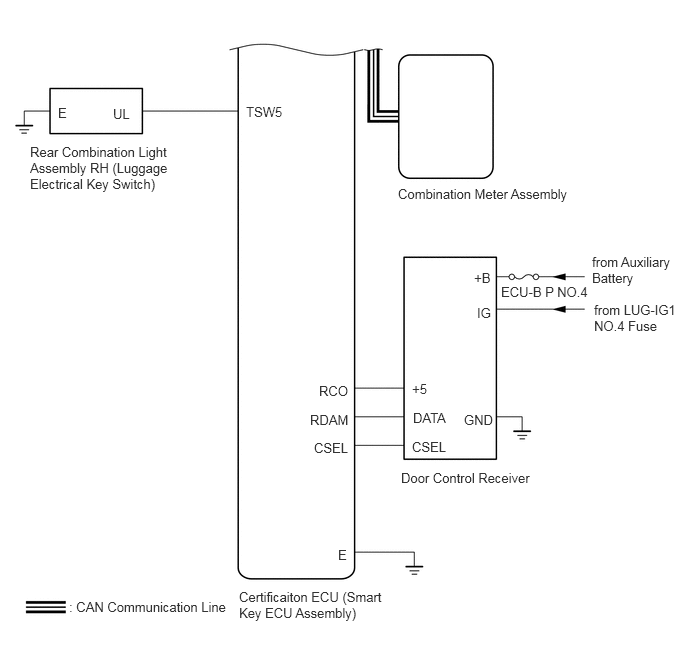

Fig 2: Smart Access System With Push-Button Start - For Entry - Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Start Function)
Refer to SYSTEM DIAGRAM [01/2017 - 05/2023]
POWER DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [01/2017 - 05/2023]
WIRELESS DOOR LOCK CONTROL SYSTEM
Refer to SYSTEM DIAGRAM [01/2017 - 05/2023]
