Junction Block Fuse, Relay & Circuit Identification
>>
Fusible Link Block Assembly No. 1 - Front Fender Apron RH
>>
Fusible Link Block Assembly No. 1 Inner Circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fusible Link Block Assembly No. 1 Inner Circuit

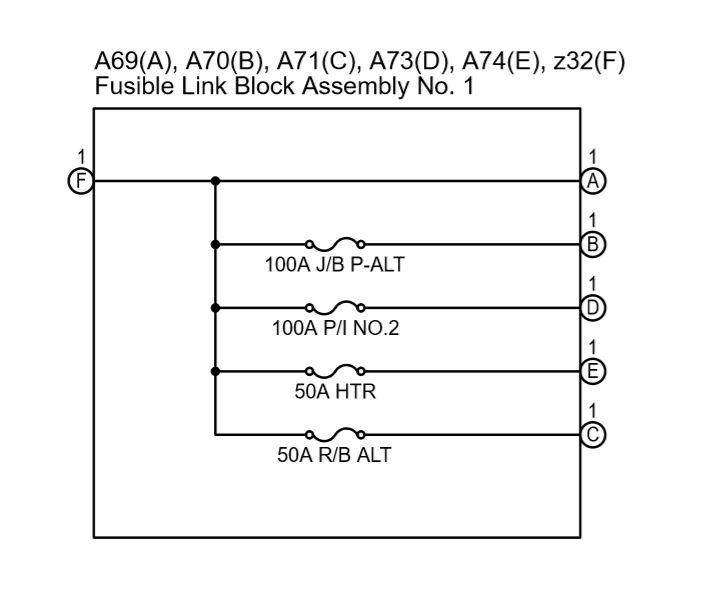

Fig 1: Fusible Link Block Assembly No. 1 Inner Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
