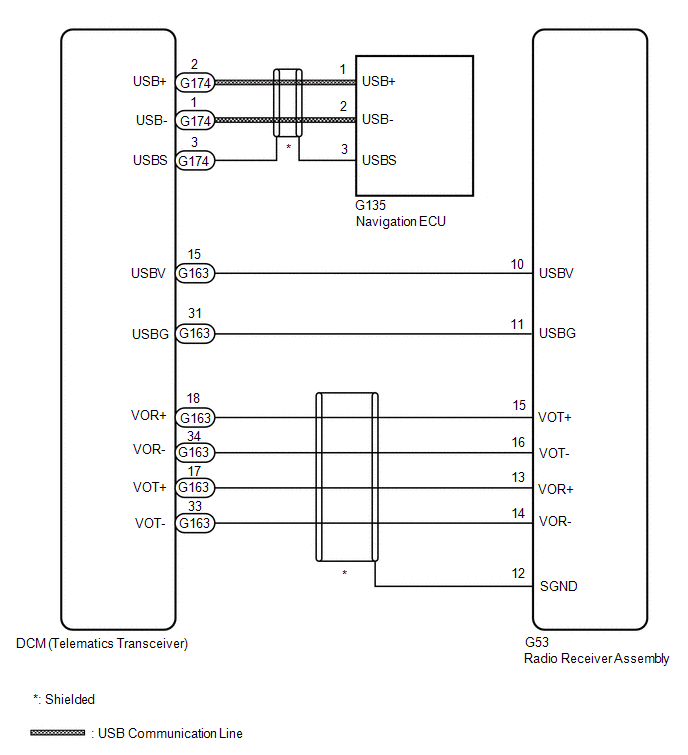

DCM Data Signal Circuit between Navigation ECU and DCM [10/2020 - 11/2021]: Wiring Diagram

GTY970253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
