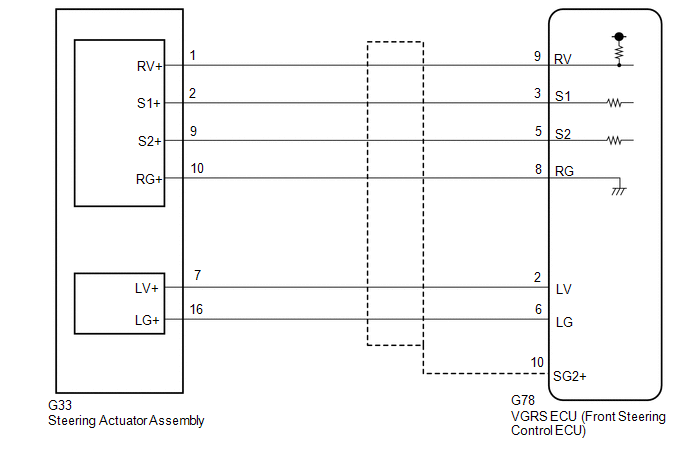

DTC C15A3: Motor Rotation Angle Not Detected; DTC C15C5: Motor Rotation Signal Not Detected [10/2017 - 10/2020]: Wiring Diagram

GTY794220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
