Components [05/2019 - ]

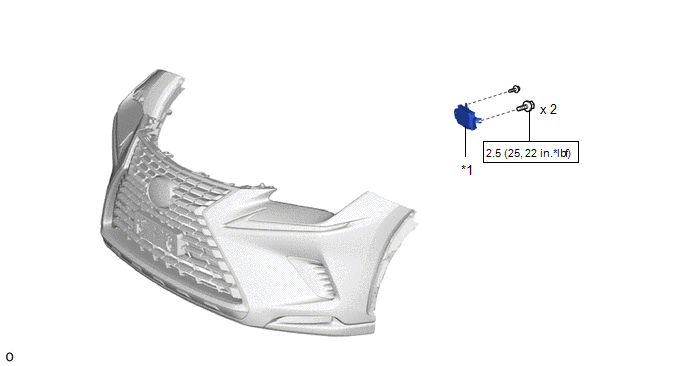

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications
GTY950381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MILLIMETER WAVE RADAR SENSOR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
