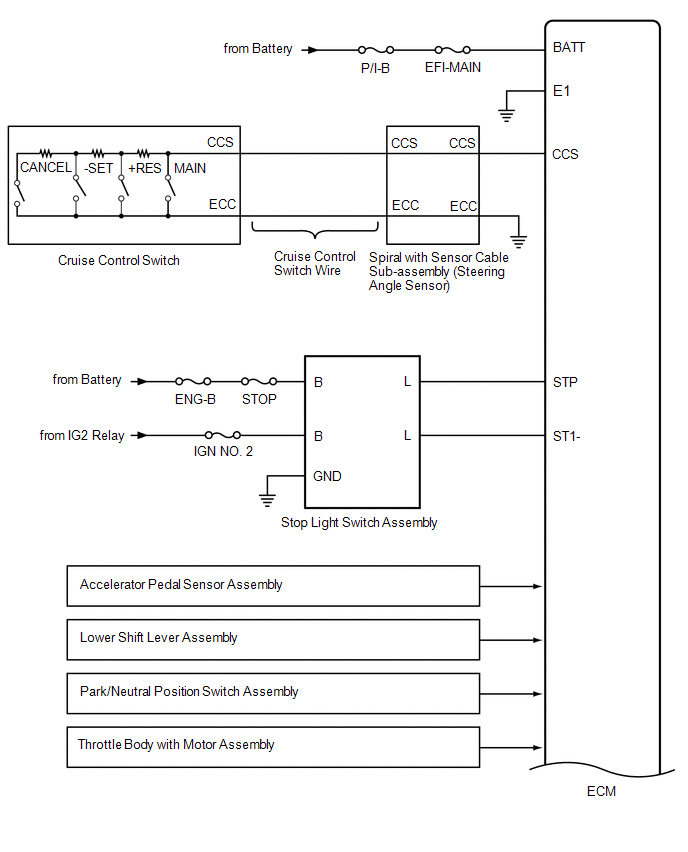

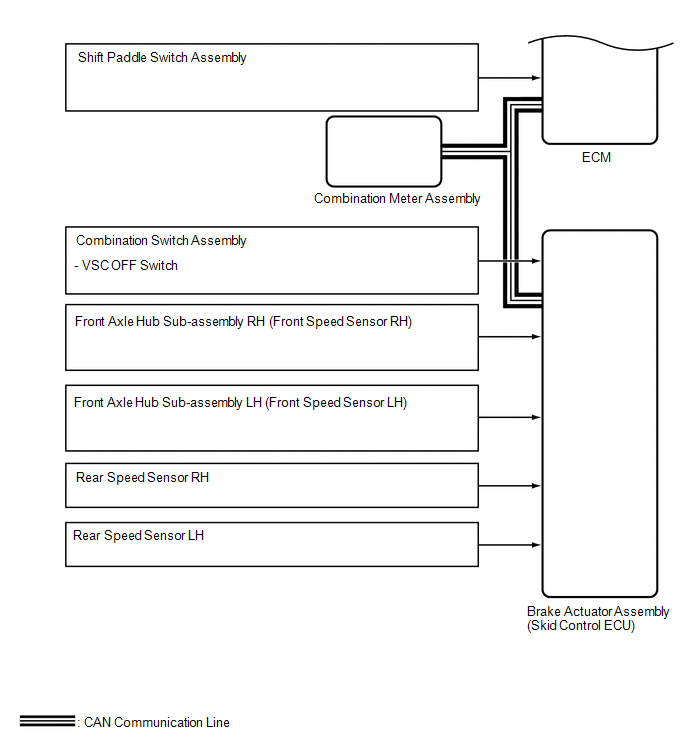

System Diagram [09/2014 - 11/2017]
WARNING: This page is about a different car, the 2017 Lexus RC F, 2016 Lexus RC F, and 2015 Lexus RC F. However, it is still accessible from the selected car via links, so may be relevant.
COMMUNICATION TABLE
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| ECM | Combination Meter Assembly
|
Cruise control indicator and cruise control SET indicator operation signal | CAN |
| Brake Actuator Assembly (Skid Control ECU) | ECM | Wheel speed signal | CAN |
| Speed sensor power drop signal | |||
| Speed sensor condition signal | |||
| Cruise control cancel request signal |
