CGW |
Network Gateway ECU |
- |
- |
| V Bus |
DLC3 |
DLC3 |
- |
- |

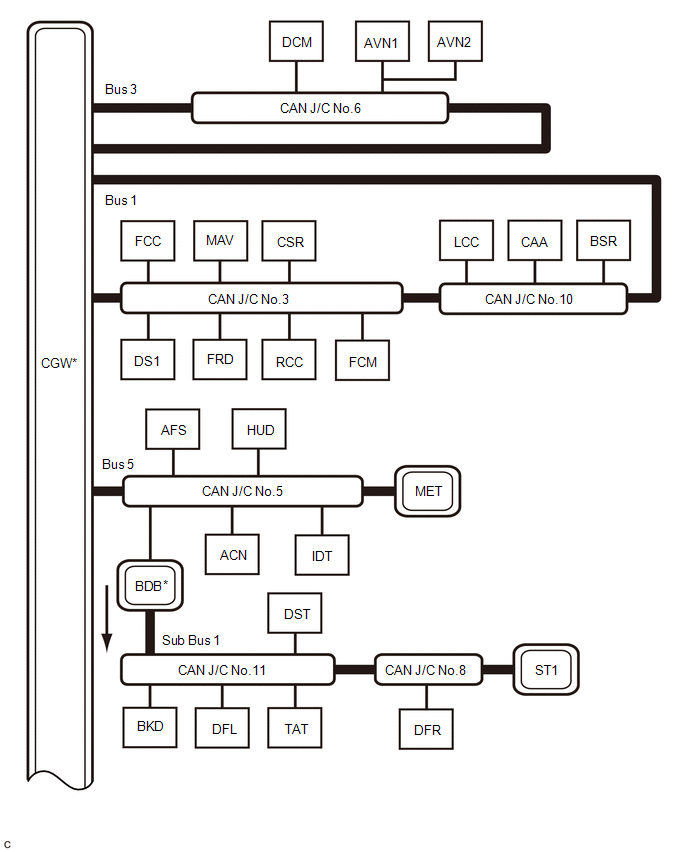

| Bus 1 |
FCC |
Front Television Camera Assembly |
- |
w/ Panoramic View Monitor System |
| MAV |
Parking Assist ECU |
Available |
w/ Panoramic View Monitor System |
| RCC |
Side Camera RH (Outer Rear View Mirror Assembly RH) |
- |
w/ Panoramic View Monitor System |
| CSR |
Clearance Warning ECU Assembly |
Available |
w/ Intuitive Parking Assist System |
| FCM |
Forward Recognition Camera |
Available |
- |
| FRD |
Millimeter Wave Radar Sensor Assembly |
- |
- |
| DS1 |
Driving Support ECU Assembly |
Available |
- |
| LCC |
Side Camera LH (Outer Rear View Mirror Assembly LH) |
- |
w/ Panoramic View Monitor System |
| CAA |
Rear Television Camera Assembly |
- |
w/ Panoramic View Monitor System |
| Available |
w/ Parking Assist Monitor System |
| BSR |
Blind Spot Monitor Sensor LH |
Available |
w/ Blind Spot Monitor System |
| CAN J/C No. 3 |
No. 3 CAN Junction Connector |
- |
- |
| CAN J/C No. 10 |
No. 10 CAN Junction Connector |
- |
- |

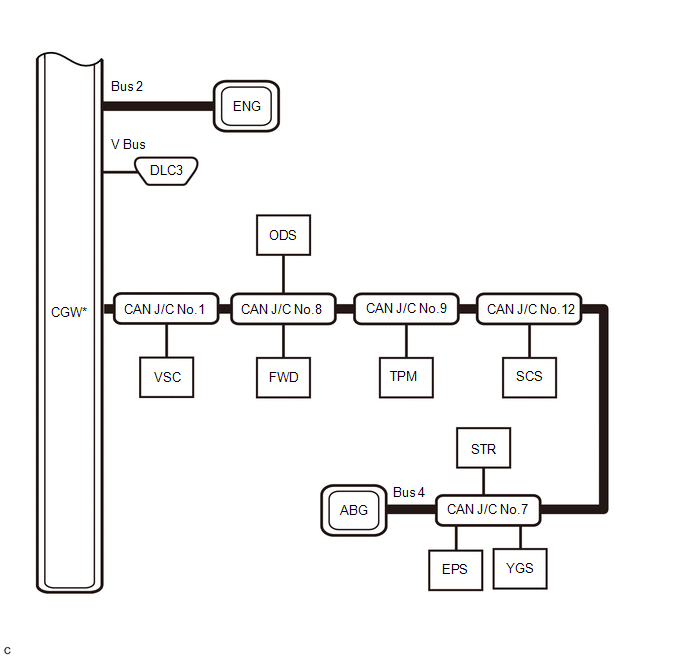

| Bus 2 |
ENG |
ECM |
Available |
- |
| Bus 3 |
AVN1 |
Radio Receiver Assembly |
Available |
w/ Navigation System |
| AVN2 |
Radio Receiver Assembly |
Available |
w/ Audio and Visual System |
| DCM |
Telematics Transceiver |
Available |
w/ Manual (SOS) Switch |
| CAN J/C No. 6 |
No. 6 CAN Junction Connector |
- |
- |
| Bus 4 |
VSC |
Skid Control ECU (Brake Actuator Assembly) |
Available |
- |
| FWD |
4WD ECU ASSEMBLY |
Available |
for AWD |
| ODS |
Occupant Detection ECU |
- |
- |
| EPS |
Power Steering ECU Assembly |
Available |
- |
| STR |
Steering Sensor |
- |
- |
| YGS |
Yaw Rate Sensor Assembly |
- |
w/ TFT Meter Type Combination Meter Assembly |
| ABG |
Airbag Sensor Assembly |
Available |
- |
| TPM |
Tire Pressure Warning ECU and Receiver |
Available |
- |
| SCS |
Absorber Control ECU |
Available |
w/ AVS |
| CAN J/C No. 1 |
No. 1 CAN Junction Connector |
- |
- |
| CAN J/C No. 7 |
No. 7 CAN Junction Connector |
- |
- |
| CAN J/C No. 8 |
No. 8 CAN Junction Connector |
- |
- |
| CAN J/C No. 9 |
No. 9 CAN Junction Connector |
- |
- |
| CAN J/C No. 12 |
No. 12 CAN Junction Connector |
- |
- |
| Bus 5 |
ACN |
Air Conditioning Amplifier Assembly |
Available |
- |
| MET |
Combination Meter Assembly |
Available |
- |
| IDT |
Certification ECU (Smart Key ECU Assembly) |
Available |
- |
| BDB |
Main Body ECU (Multiplex Network Body ECU) |
Available |
- The main body ECU (multiplex network body ECU) acts as a gateway between the bus 5 and sub bus 1.
- The main body ECU (multiplex network body ECU) is also connected to the LIN communication system.
|
| AFS |
Headlight ECU Sub-assembly LH |
Available |
w/ Automatic Headlight Beam Level Control System |
| HUD |
Combination Meter Mirror ECU (Headup Display) |
Available |
w/ Headup Display System |
| CAN J/C No. 5 |
No. 5 CAN Junction Connector |
- |
- |
| Sub Bus 1 |
BDB |
Main Body ECU (Multiplex Network Body ECU) |
Available |
- The main body ECU (multiplex network body ECU) acts as a gateway between the bus 5 and sub bus 1.
- The main body ECU (multiplex network body ECU) is also connected to the LIN communication system.
|
| BKD |
Multiplex Network Door ECU |
Available |
- |
| DFL |
Outer Mirror Control ECU Assembly (for Driver Side) |
Available |
- |
| TAT |
Multiplex Tilt and Telescopic ECU |
Available |
- |
| DST |
Position Control ECU and Switch Assembly LH |
- |
w/ Seat Position Memory System |
| DFR |
Outer Mirror Control ECU Assembly (for Front Passenger Side) |
Available |
- |
| ST1 |
No. 1 CAN Junction Terminal |
- |
- |
| CAN J/C No. 11 |
No. 11 CAN Junction Connector |
- |
- |
| CAN J/C No. 8 |
No. 8 CAN Junction Connector |
- |
- |
