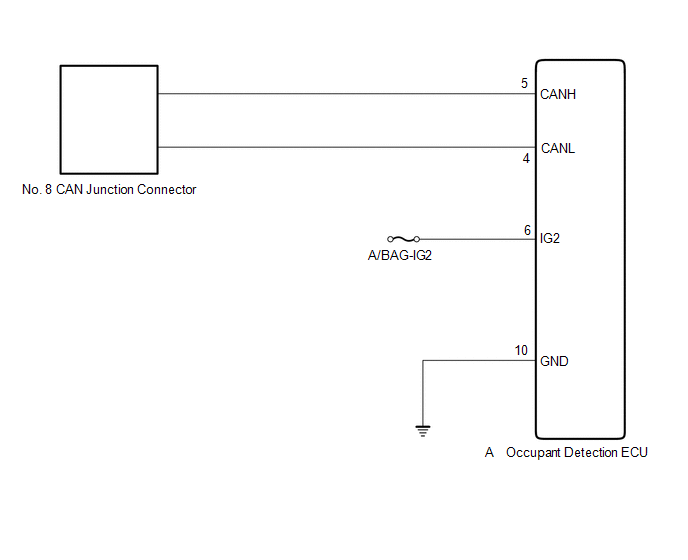

Restraints Occupant Classification System Module Communication Stop Mode [10/2015 - ]: Wiring Diagram

GTY632418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
