DTC U0242: Lost Communication With Headlamp Control Module "B" [08/2019 - ]: Wiring Diagram

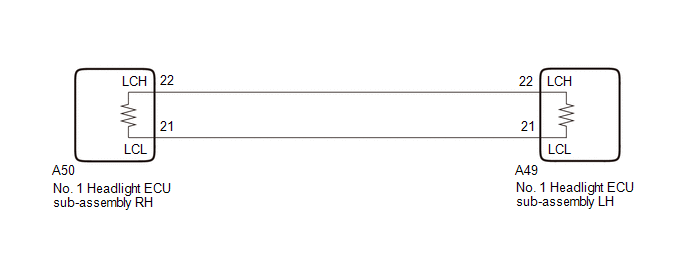

  1. for Multiple Beam Headlight
    GTY947712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

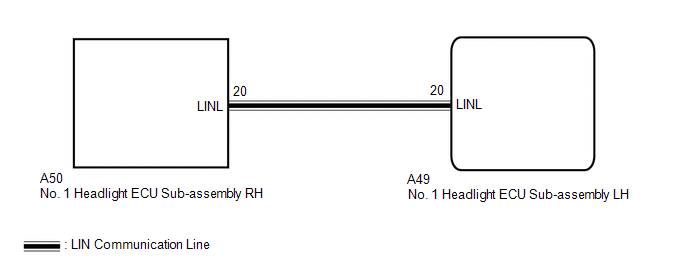

  2. for Single Beam Headlight
    GTY962971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
