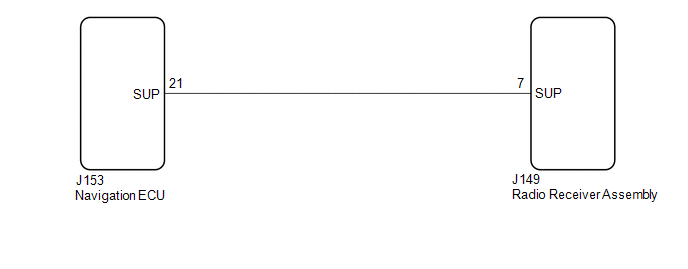

Start Up Signal Circuit between Radio Receiver Assembly and Navigation ECU [08/2019 - ]: Wiring Diagram

GTY959836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
