System Diagram [10/2015 - 08/2019]

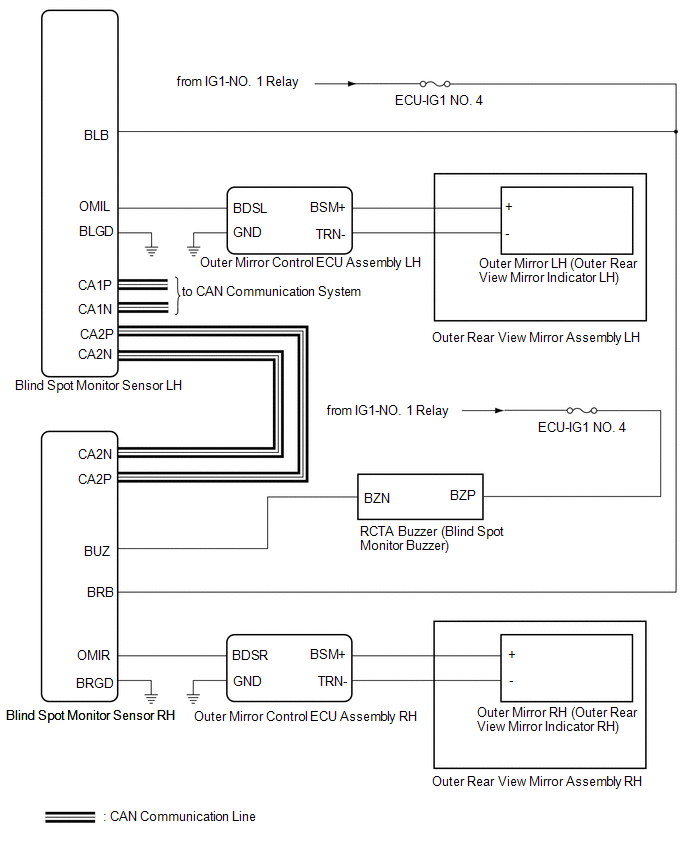

Fig 1: Blind Spot Monitor System Diagram [10/2015 - 08/2019] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

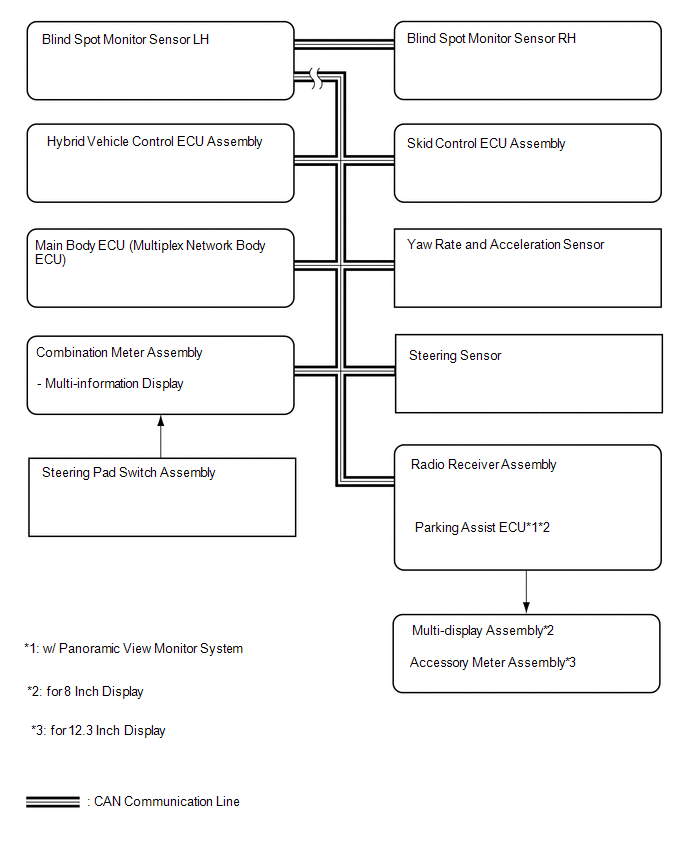

Fig 2: Blind Spot Monitor System Diagram [10/2015 - 08/2019] (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
