DTC B27A6: Open in Rear Floor Electrical Key Oscillator Circuit [09/2014 - ]: Procedure
- CHECK CONNECTOR CONNECTION
- Turn the engine switch off.
- Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (rear floor).
OK
Connectors are properly connected.
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY AND BODY GROUND)
- Disconnect the A34 and T2 certification ECU (smart key ECU assembly) connectors.
- Disconnect the U14 No. 2 indoor electrical key antenna assembly (rear floor) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition T2-11 (CLG6) - U14-1 (ANTE6) Always Below 1 Ω T2-10 (CG6B) - U14-3 (CLGB) Always Below 1 Ω A34-11 (E) - Body ground Always Below 1 Ω T2-11 (CLG6) or U14-1 (ANTE6) - Body ground Always 10 kΩ or higher T2-10 (CG6B) or U14-3 (CLGB) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY)

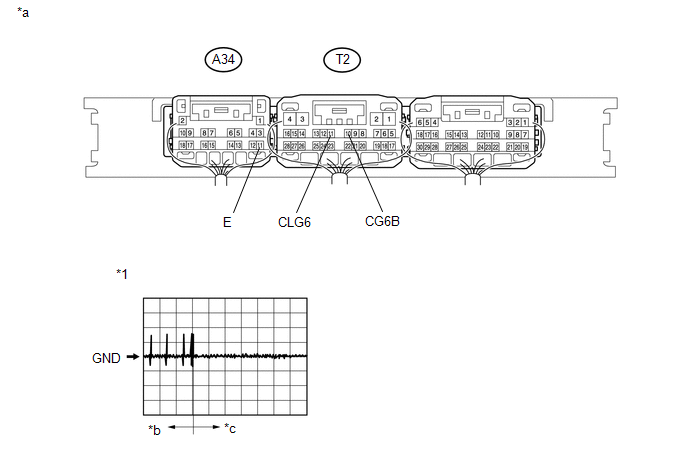

- Connect the A34 and T2 certification ECU (smart key ECU assembly) connectors.TEXT IN ILLUSTRATION
*1 Waveform - - *a Component with harness connected
(Certification ECU [Smart Key ECU Assembly])*b Within approximately 30 seconds from when the door is closed *c After approximately 30 seconds from when the door is closed - - - Connect the U14 No. 2 indoor electrical key antenna assembly (rear floor) connector.
- Using an oscilloscope, check the waveform.
OK
Tester Connection Switch Condition Tool Setting Specified Condition T2-11 (CLG6) - A34-11 (E) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly not inside vehicle
- Door is open
- Door is closed
- Within 30 seconds
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform) T2-10 (CG6B) - A34-11 (E) Procedure: - Engine switch off
- Electrical key transmitter sub-assembly not inside vehicle
- Door is open
- Door is closed
- Within 30 seconds
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL [09/2014 - ] )
Result:
OK
See step 4
- Connect the A34 and T2 certification ECU (smart key ECU assembly) connectors.
- REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)
- Temporarily replace the No. 2 indoor electrical key antenna assembly (rear floor) with a new or known good one (Refer to REMOVAL [09/2014 - ] ).
Result:
NEXT
See step 5
- CLEAR DTC
- Clear the DTCs (Refer to DTC CHECK / CLEAR [09/2014 - ] ).
Result:
NEXT
See step 6
- CHECK FOR DTC
- Check for DTCs (Refer to DTC CHECK / CLEAR [09/2014 - ]
).
OK
DTC B27A6 is not output.
Result:
OK
END (NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY [REAR FLOOR] WAS DEFECTIVE)
Result:
NG
REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
(Refer to REMOVAL [09/2014 - ] )
- Check for DTCs (Refer to DTC CHECK / CLEAR [09/2014 - ]
).
