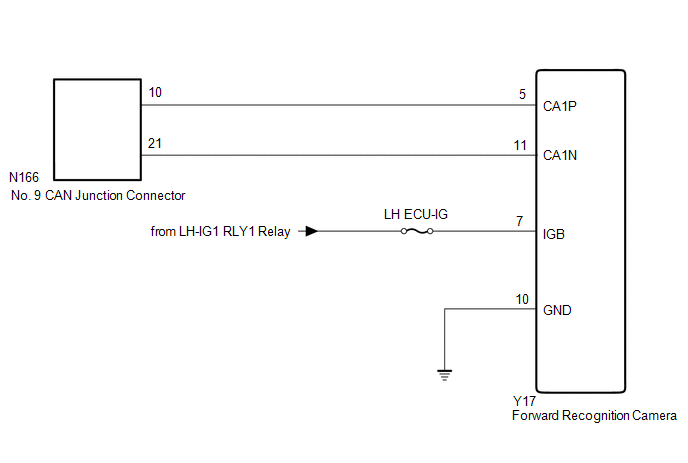

Front Camera Module Communication Stop Mode [10/2015 - 09/2018]: Wiring Diagram

GTY673011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
