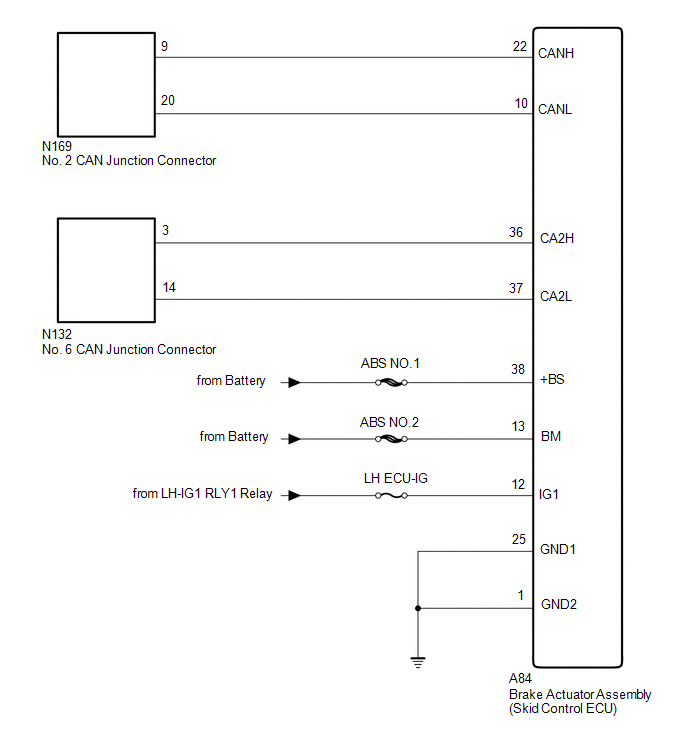

Skid Control ECU Communication Stop Mode [09/2017 - 09/2018]: Wiring Diagram

GTY820163

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
