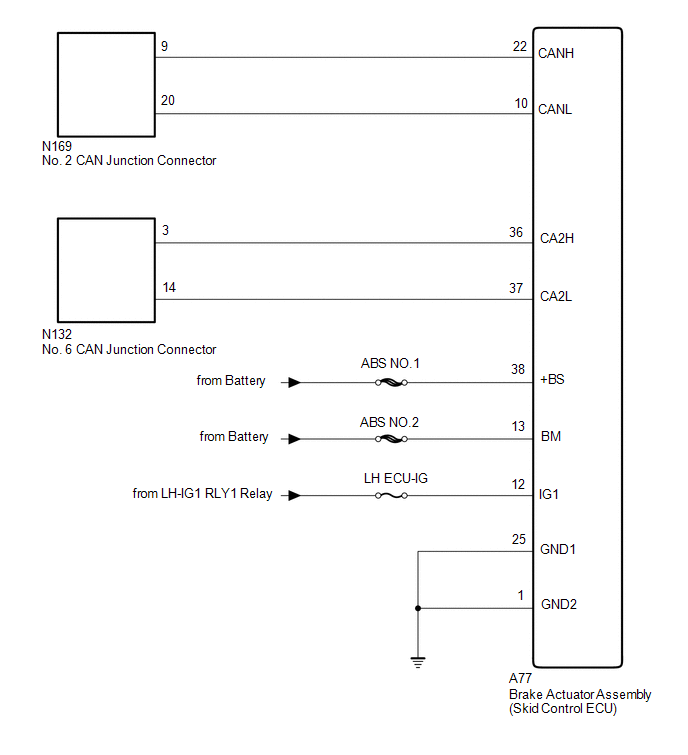

Skid Control ECU Communication Stop Mode [10/2015 - 09/2017]: Wiring Diagram

GTY664416

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
