Visual Mute Signal Circuit between Navigation ECU and Multi-display [09/2014 - ]: Procedure

1. Disconnect the N62 accessory meter assembly connector.
2. Disconnect the N68 multi-media module receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N62-11 (VMTI) - N68-10 (VMTF)	Always	Below 1 Ω
   N62-11 (VMTI) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  2

1. Measure the voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   N68-10 (VMTF) - Body ground	Engine switch on (ACC), screen display changes.	3.5 V or higher → Below 1 V → 3.5 V or higher

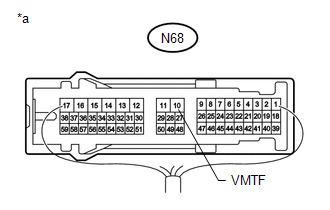

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (Multi-media Module Receiver Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 09/2017] , or refer to PROBLEM SYMPTOMS TABLE [09/2017 - ] )

Result:

NG

REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

(Refer to REMOVAL [09/2014 - 09/2017] , or refer to REMOVAL [09/2017 - ] )
