Engine Room Relay Block Assembly No. 1 and Engine Room Junction Block Assembly No. 3 Inner Circuit

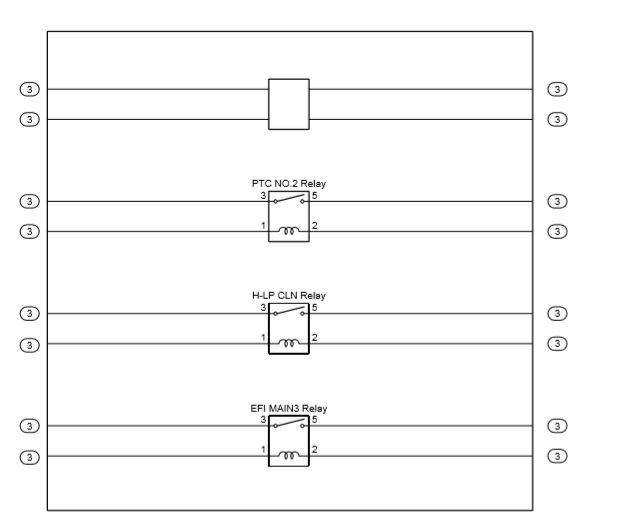

Fig 1: Engine Room R/B And J/B Assembly No. 3 Inner Circuit Diagram
G00584522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B NO. 3 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
PTC NO. 2 Relay
H-LP CLN Relay
EFI MAIN NO. 3 Relay
