Components [09/2014 - 10/2015]: Illustration

WARNING: This page is about a different car, the 2015 Lexus GS 350. However, it is still accessible from the selected car via links, so may be relevant.

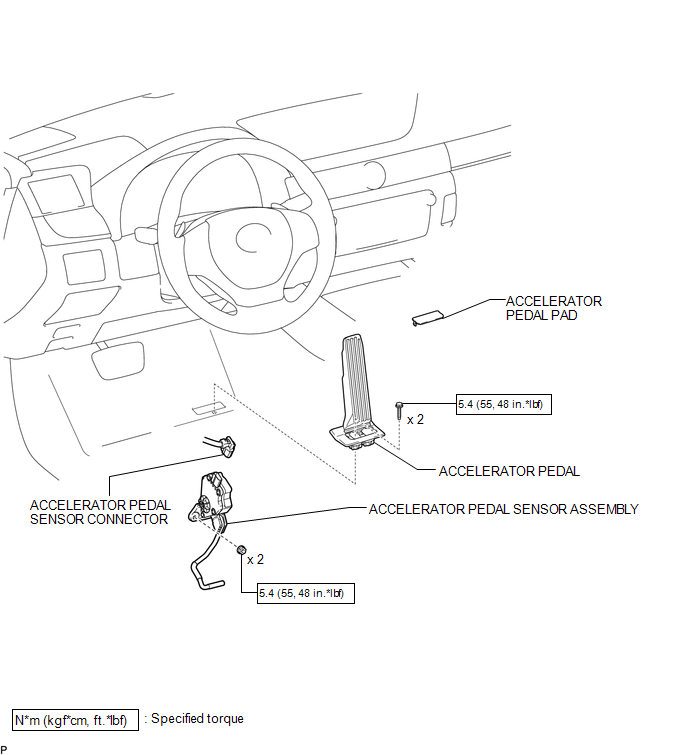

Fig 1: Accelerator Pedal Sensor Replacement Components With Torque Specifications
GTY538289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
