Driver Side Door Entry Lock and Unlock Functions do not Operate [08/2015 - 08/2019]: Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the doors unlock and lock according to the switch operation (Refer to OPERATION CHECK [08/2015 - 08/2019] ).

      OK

      Door locks operate normally.

    Result:

    NG

    Go to POWER DOOR LOCK CONTROL SYSTEM

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] )

    Result:

    OK

    See step  2

  2. READ VALUE USING TECHSTREAM (DOOR LOCK POSITION SWITCH)
    1. When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the Data List using the Techstream (Refer to DATA LIST / ACTIVE TEST [08/2015 - 08/2019] ).
      MAIN BODY

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      FL Door Lock Pos Front LH side door lock position switch signal / UNLOCK or LOCK UNLOCK: Front LH side door unlocked
      LOCK: Front LH side door locked
      -

      OK

      The Techstream display changes correctly in response to the operation of the front door lock assembly LH.

    Result:

    NG

    Go to POWER DOOR LOCK CONTROL SYSTEM

    (Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] )

    Result:

    OK

    See step  3

  3. CHECK ELECTRICAL KEY ANTENNAS IN KEY DIAGNOSTIC MODE
    1. Check the following antennas in the key diagnostic mode (Refer to OPERATION CHECK [08/2015 - 08/2016] , or refer to OPERATION CHECK [08/2016 - 08/2019] ).

      OK

      Entry function operates normally.

      1. Check the electrical key antenna (for driver side):
        GTY632201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *a 0.7 to 1 m (2.30 to 3.28 ft.)

        When the electrical key transmitter is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly LH, check that the wireless door lock buzzer sounds.

    Result:

    OK

    REPLACE CERTIFICATION ECU

    (Refer to REMOVAL [08/2015 - 08/2019] )

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (FRONT DOOR OUTSIDE HANDLE LH - CERTIFICATION ECU)
    1. Disconnect the O1 front door outside handle assembly LH connector.
    2. Disconnect the G26 certification ECU connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      O1-3 (ANT2) - G26-4 (CG1B) Always Below 1 Ω
      O1-6 (ANT1) - G26-3 (CLG1) Always Below 1 Ω
      O1-5 (B) - G26-32 (POS1) Always Below 1 Ω
      O1-2 (GND) - Body ground Always Below 1 Ω
      O1-3 (ANT2) or G26-4 (CG1B) - Body ground Always 10 kΩ or higher
      O1-6 (ANT1) or G26-3 (CLG1) - Body ground Always 10 kΩ or higher
      O1-5 (B) or G26-32 (POS1) - Body ground Always 10 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK CERTIFICATION ECU (OUTPUT TO DRIVER SIDE ELECTRICAL KEY ANTENNA)
    1. Disconnect the O1 front door outside handle assembly LH connector.

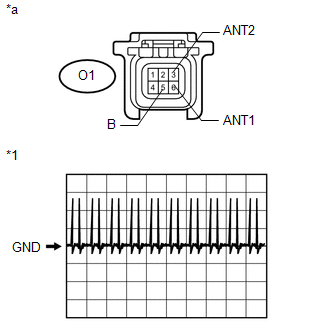

      GTY613720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the G26 certification ECU connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      O1-5 (B) - Body ground Engine switch off → on (IG) 9 to 12 V → Below 2 V
    4. Using an oscilloscope, check the waveform.

      OK

      Tester Connection Switch Condition Tool Setting Specified Condition
      O1-3 (ANT2) - O1-6 (ANT1) Procedure:
      1. Engine switch off
      2. Key brought outside vehicle
      3. All doors closed
      4. Key not inside vehicle
      5. All doors locked through wireless operation
      2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
      TEXT IN ILLUSTRATION

      *1 Waveform
      *a Front view of wire harness connector
      (to Front Door Outside Handle Assembly LH)

    Result:

    NG

    REPLACE CERTIFICATION ECU

    (Refer to REMOVAL [08/2015 - 08/2019] )

    Result:

    OK

    See step  6

  6. REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH
    1. Temporarily replace the front door outside handle assembly LH with a new or normally functioning one (Refer to DISASSEMBLY [08/2015 - ] ).

    Result:

    NEXT

    See step  7

  7. CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (OPERATION)
    1. Check that the entry functions operate normally (Refer to OPERATION CHECK [08/2015 - 08/2016] , or refer to OPERATION CHECK [08/2016 - 08/2019] ).

      OK

      Entry functions operate normally.

    Result:

    OK

    END (FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH IS DEFECTIVE)

    Result:

    NG

    REPLACE CERTIFICATION ECU

    (Refer to REMOVAL [08/2015 - 08/2019] )
