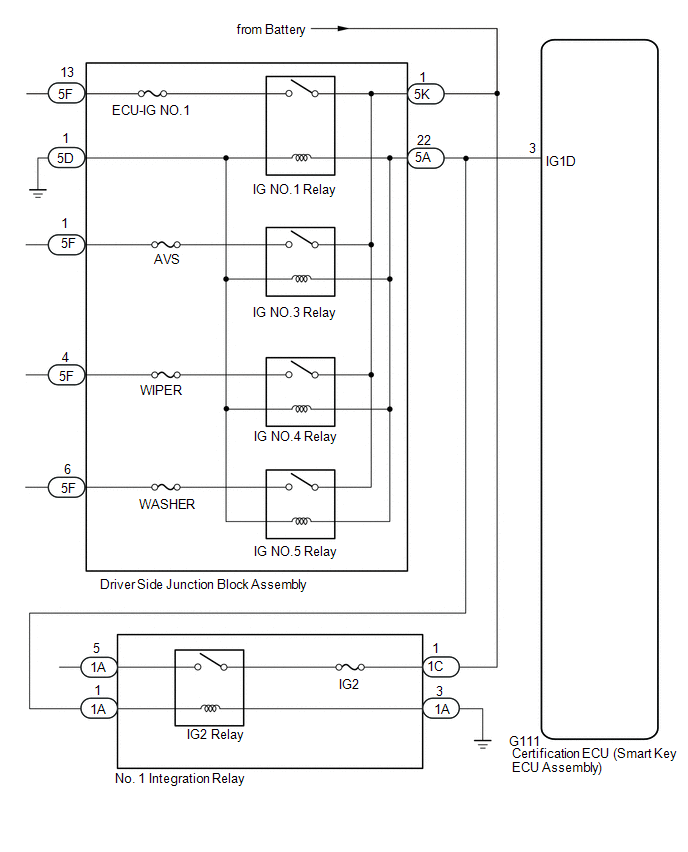

Power Source Mode does not Change to ON (IG) [08/2019 - ]: Wiring Diagram

GTY962711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
