System Diagram [08/2015 - 08/2019]

  1. DOOR BUS LINES

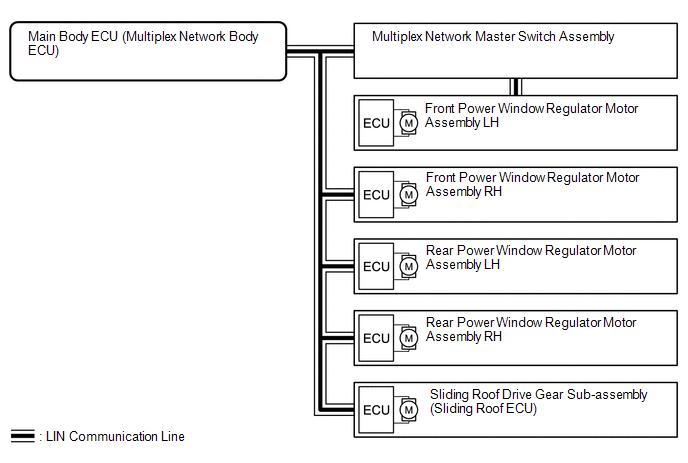

    Fig 1: LIN Communication System Wiring Diagram - Door Bus Lines
    GTY461695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CERTIFICATION ECU LINES

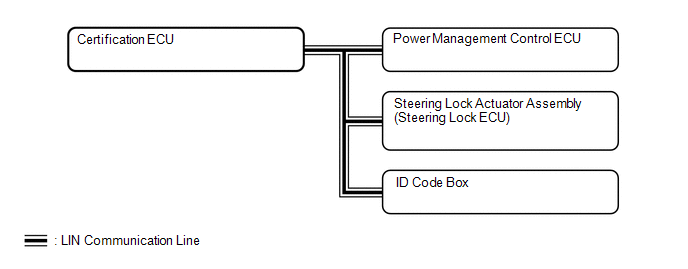

    Fig 2: Certification ECU Lines System Diagram
    GTY629769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. AIR CONDITIONING BUS LINES (w/ Rear Air Conditioning System)

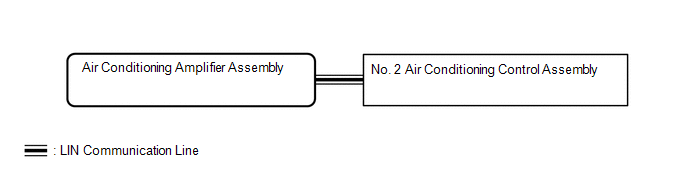

    Fig 3: Air Conditioning Bus Lines System Diagram
    GTY464029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. WINDSHIELD WIPER BUS LINES (w/ Rain Sensor)
    Fig 4: Air Conditioning Bus Lines System Diagram
    GTY479623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. LIGHTING BUS LINES

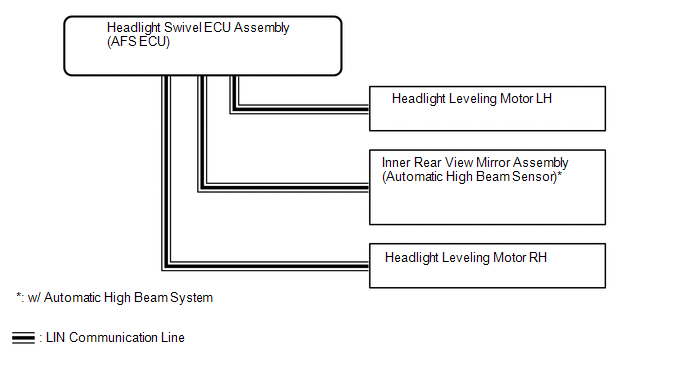

    Fig 5: Lighting Bus Lines System Diagram
    GTY652090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. MULTI-TERRAIN MONITOR BUS LINES

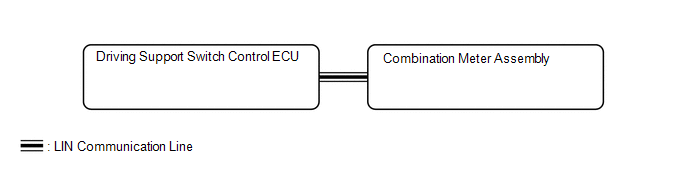

    Fig 6: Multi-Terrain Monitor Bus Lines System Diagram
    GTY470287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
