Touch Panel Switch does not Function [08/2015 - 08/2021]: Procedure

1. Check if there is any foreign matter caught between the display and exterior frame of the multi-display assembly.

   OK

   No foreign matter is caught between the display and exterior frame of the multi-display assembly.

   HINT:

   If there is foreign matter between the display and exterior frame of the multi-display assembly, the touch panel will remain pressed, preventing touch switch operation.

Result:

NG

REMOVE FOREIGN MATTER

Result:

OK

See step  2

1. Check for foreign matter on the display.

   OK

   The display is clean.

Result:

NG

CLEAN DISPLAY AND RECHECK TOUCH PANEL

Result:

OK

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

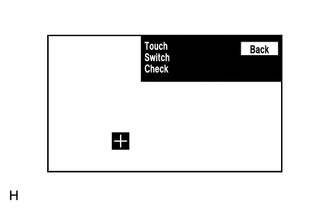

1. Enter the "Touch Switch Check" screen. Refer to Check Touch Switch in Operation Check (Refer to OPERATION CHECK [08/2015 - 08/2021] ).
2. Touch the display in the area where the switch malfunction occurs.

   OK

   A "+" mark appears at the touched position.

Result:

OK

REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

(Refer to REMOVAL [08/2015 - 08/2021] )

Result:

NG

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] , or refer to PROBLEM SYMPTOMS TABLE [08/2019 - 08/2021] )
