DTC Check / Clear [08/2015 - 08/2019]

  1. CHECK DTC (CHECK USING TECHSTREAM)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Navigation System / Trouble Codes.
    5. Check for DTCs, and then write them down.
    6. Check the details of the DTC(s).
  2. CLEAR DTC (CLEAR USING TECHSTREAM)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Navigation System / Trouble Codes.
    5. Clear the DTCs.
  3. START DIAGNOSTIC MODE

    HINT:

    • Illustrations may differ from the actual vehicle screen depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle screen.
    • After the engine switch is turned on (IG), check that the map is displayed before starting diagnostic mode. Otherwise, some items cannot be checked.
    1. Start the engine.
    2. While pressing and holding the "INFO APPS" switch of the multi-display assembly, operate the light control switch: Off → Tail → Off → Tail → Off → Tail → Off.
    3. Diagnostic mode starts and the "Service Menu" screen will be displayed. Service inspection starts automatically and the result will be displayed.
      Fig 1: "Info Apps" Switch Of The Multi-Display Assembly
      GTY653870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. FAILURE DIAGNOSIS
    1. The "Failure Diagnosis" screen will be displayed by pressing the "Failure Diagnosis" switch on the "Service Menu" screen.

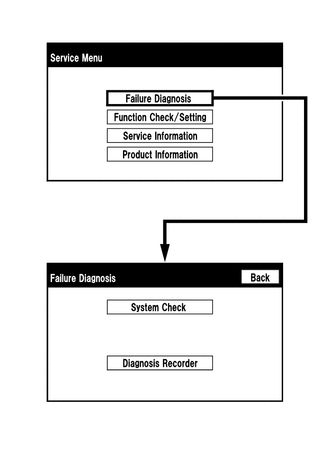

      Fig 2: Screen Display - Service Menu & Failure Diagnosis
      GTY435352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. SYSTEM CHECK
    1. The "System Check Mode" screen will be displayed by selecting "System Check" on the "Failure Diagnosis" screen.

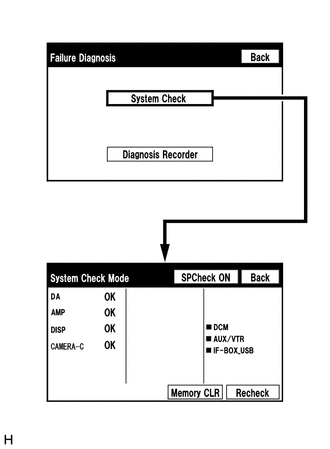

      Fig 3: Screen Display - Failure Diagnosis & System Check Mode
      GTY470655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CHECK DTC (CHECK USING SYSTEM CHECK MODE SCREEN)
    1. System check mode screen description

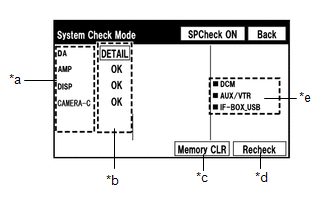

      Fig 4: System Check Mode Screen Components
      GTY459354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SCREEN DESCRIPTION

      Display Content
      *a: Device Name List No. 1
      • Device Name List No. 1 displays some of the devices that make up the audio and visual system (w/o Navigation System).
      • The names of the components from Device Name List No. 1 are shown in the following table.
      *b: Check Result Result codes for all devices are displayed.
      *c: Memory Clear
      • Present and history DTCs and registered connected device names are cleared.
      • Select "Memory CLR" for 3 seconds.
      *d: Recheck
      • A system check will be performed again after the memory is cleared.
      • "Recheck" will dim during a system check.
      *e: Device Name List No. 2
      • Device Name List No. 2 displays some of the devices that make up the audio and visual system (w/o Navigation System).
      • The names of the components from Device Name List No. 2 are shown in the following table.
      *B: DEVICE NAME LIST NO. 1 DESCRIPTION

      Name Component Connection Method
      DA Multi-media module receiver assembly -
      AMP Stereo component amplifier assembly Communication line for AVC-LAN
      DISP Multi-display assembly Communication line for AVC-LAN
      CAMERA-C Parking assist ECU* Communication line for AVC-LAN
      1. *: w/ Side Monitor System
      *C: CHECK RESULT DESCRIPTION

      Result Meaning Action
      OK The device does not respond with a DTC. -
      DETAIL The device responds with a DTC. Look up the DTC in "Unit Check Mode".
      NCON The device was previously present, but does not respond in diagnostic mode. - Check power supply wire harness of the device.
      - Check the AVC-LAN of the device.
      NRES The device responds in diagnostic mode, but gives no DTC information. - Check power supply wire harness of the device.
      - Check the AVC-LAN of the device.
      *F: DEVICE NAME LIST NO. 2 DESCRIPTION

      Name Component Connection Method
      DCM DCM (Telematics Transceiver)* Communication line for USB
      AUX/VTR No. 1 stereo jack adapter assembly Vehicle wire harness
      IFBOX_ USB No. 1 stereo jack adapter assembly Communication line for USB
      1. *: w/ Manual (SOS) Switch
    2. Unit check mode screen description
      Fig 5: Unit Check Mode Screen Components
      GTY464685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SCREEN DESCRIPTION

      Display Content
      *a: Device name Target device
      *b: History DTC Diagnostic memory results and stored DTCs are displayed.
      *c: Current DTC DTCs output in the service check are displayed.
      *d: DTC DTC (Diagnostic Trouble Code)
      *e: Timestamp The time and date of history DTCs are displayed. (The year is displayed in 2- digit format.)
      *f: Diagnosis clear switch Selecting "Code CLR" for 3 seconds clears the diagnostic memory data of the target device. (Both diagnostic system check result and the displayed data are cleared.)

      HINT:

      • This screen is updated once per second.
      • A maximum of 6 DTCs can be displayed for history and present DTCs.
    3. Read the system check result.

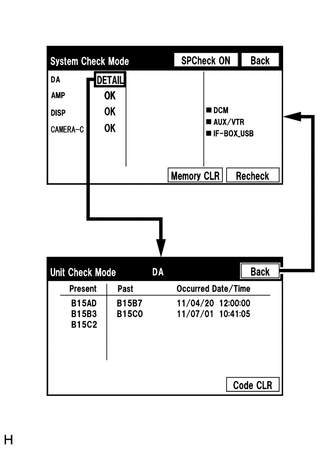

      Fig 6: Read The System Check Results
      GTY465877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. If the check result is "DETAIL", select the displayed check result to view the results on the "Unit Check Mode" screen and record them.
        NOTE:

        A maximum of 6 DTCs can be displayed for history and present DTCs on the "Unit Check Mode" screen. Therefore, when 6 DTCs are displayed, troubleshoot those DTCs first and then check the "Unit Check Mode" screen again to see if any other DTCs are displayed.

        HINT:

        • When all results are "OK", no DTCs are present.
        • When "NCON" is displayed for all devices connected via the AVC-LAN, or when all device names are not displayed, check if there is a short circuit in the AVC-LAN or devices connected to the AVC-LAN. Repair or replace parts as necessary (Refer to AVC-LAN Circuit [08/2015 - 08/2019] ).
        • When proceeding to view the results of another device, select the "Back" switch to return to the "System Check Mode" screen. Repeat the above step to view the results of other devices.
      2. Check the details of the DTC(s) (Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2019] ).
        NOTE:

        The audio and visual system (w/o navigation system) outputs DTCs for the following system. When DTCs other than those in Diagnostic Trouble Code Chart for the audio and visual system (w/o navigation system) are output, refer to Diagnostic Trouble Code Chart for the relevant system.

        System Proceed to
        Parking Assist Monitor System*1 Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2019]
        Wide View Front Monitor System*2 Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2019]
        Side Monitor System*3 Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2019]
        Safety Connect System*4 Refer to DIAGNOSTIC TROUBLE CODE CHART [08/2015 - 08/2016] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2016 - 08/2018] , or refer to DIAGNOSTIC TROUBLE CODE CHART [08/2018 - 08/2019]
        1. *1: w/ Parking Assist Monitor System
        2. *2: w/ Wide View Front Monitor System
        3. *3: w/ Side Monitor System
        4. *4: w/ Safety Connect System
  7. DTC CLEAR/RECHECK (CLEAR USING SYSTEM CHECK MODE SCREEN)
    1. Clear DTCs

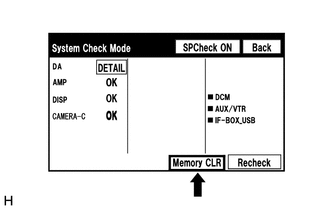

      Fig 7: Selecting Memory CLR From System Check Mode Screen
      GTY465878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Select "Memory CLR" for 3 seconds.
      2. Confirm that the check results are cleared.

        HINT:

        • To clear the DTCs for a specific device, clear the DTCs using the "Unit Check Mode" screen.
        • When clearing DTCs using the "Unit Check Mode" screen, select "Code CLR" for 3 seconds.
    2. Recheck

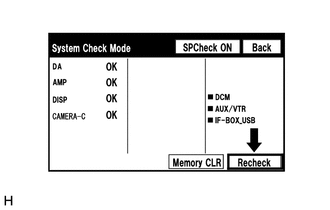

      Fig 8: Selecting Recheck From System Check Mode Screen
      GTY465884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Press the "Recheck" switch.
      2. Confirm that all diagnostic codes are "OK" when the check results are displayed. If a result other than "OK" is displayed, perform troubleshooting again.

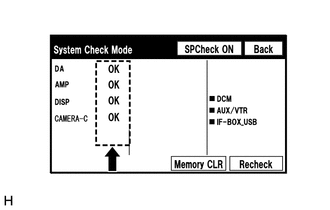

        Fig 9: Screen Display - All Codes OK
        GTY465886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        When the DTCs are cleared using the "Unit Check Mode" screen, select "Back" to return to the "System Check Mode" screen and perform this operation.

  8. FINISH DIAGNOSTIC MODE
    1. There are 2 methods to end diagnostic mode. Use one of them.
    2. Turn the engine switch off.
    3. Press and hold the "AUDIO" switch for 3 seconds.
