Operation Check [08/2015 - 08/2016]

HINT:

Before performing the window lock switch operation check, make sure that the window lock switch is off (the switch is not pushed in).

1. When the window lock switch of the multiplex network master switch assembly is pushed in. Check that the power window switch operation indicators for all of switches other than those on the multiplex network master switch are off and that the front passenger and rear windows are disabled.

   OK

   Front passenger and rear windows are disabled.

   HINT:

   Even when the window lock switch of the multiplex network master switch assembly is pushed in, remote manual up and down and auto up and down functions can be operated.

2. When the window lock switch is pushed in again. Check that all of the power window switch operation indicators illuminate and that the front passenger and rear windows can be operated normally.

   OK

   Front passenger and rear windows operate normally.

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Engine switch on (IG)	Driver side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Engine switch on (IG) Window lock switch off	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the driver side power window operates as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Engine switch on (IG)	Driver side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

2. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Regulator Switch	Switch Operation	Power Window
   Engine switch on (IG) Window lock switch off	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Engine switch on (IG)	Front passenger side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear LH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)
   	Rear RH side	Pulled halfway up	UP (Closes)
   		Pushed halfway down	DOWN (Opens)

1. Check that the front passenger side window and rear power windows operate as follows:
   OK



   Condition	Master Switch	Switch Operation	Power Window
   Engine switch on (IG)	Front passenger side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear LH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)
   	Rear RH side	Pulled up (One touch operation)	AUTO UP (Closes)
   		Pushed down (One touch operation)	AUTO DOWN (Opens)

1. Check that all the power windows can be operated with the multiplex network master switch and power window regulator switch (for front passenger side, rear LH and RH sides) after the engine switch is turned off.

   HINT:

   If the window lock switch is on, the windows cannot be operated using the power window regulator switch assemblies (for front passenger, rear LH and rear RH sides) and power window regulator master switch (remote function). Therefore, turn the window lock switch off before checking the window operation.

2. Check that the key-off operation function does not operate after the driver side door or front passenger side door is opened.

   HINT:

   If the driver door or front passenger door is opened during automatic window operation while the key-off operation function is on, the window will stop operating.

3. Check that all the power windows cannot be operated after more than approximately 43 seconds have elapsed since the engine switch was turned off.

1. Check that all power windows operate as follows:
   OK



   Condition	Door Key Cylinder Operation	Power Window
   No key is inside vehicle and all doors are closed	Held in lock position for more than 2 seconds	Up (Closes)
   No key is inside vehicle and all doors are closed	Returned to neutral position	Stop
   No key is inside vehicle and all doors are closed	Held in unlock position for more than 2 seconds	Down (Opens)
   No key is inside vehicle and all doors are closed	Returned to neutral position	Stop

1. Check that all power windows operate as follows when operating the transmitter:
   OK



   Condition	Transmitter Operation	Power Window
   No key is inside vehicle	UNLOCK switch pressed for more than 3.0 seconds	Down (Opens)
   No key is inside vehicle	UNLOCK switch released	Stops
   No key is inside vehicle, and all doors are closed and locked	LOCK switch pressed for more than 3.0 seconds	Up (Closes)
   No key is inside vehicle, and all doors are closed and locked	LOCK switch released	Stops

1. Check the basic function.
   WARNING:

   Do not put your fingers between the door frame and door glass to check the jam protection function. Also, prevent any part of your body from being caught during inspection.

   HINT:

   The jam protection function is operative during both the auto up and manual up operations while the engine is running or the engine switch is on (IG), and also 43 sec. have elapsed after the engine switch is turned off.

   1. Fully open the window.

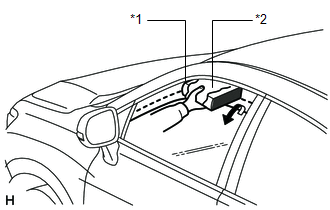

   2. Set a thick book wrapped with a piece of cloth near the window fully closed position.
      Fig 1: Set Thick Book Wrapped With Cloth Near Window Fully Closed Position

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1	Thick Book
      *2	Cloth

   3. Operate the auto up or manual up function to check that the power window goes down after the book is caught between the window and door frame, and stops when the opening reaches approximately 200 mm (7.87 in.).

      HINT:

      The power window moves down approximately 125 mm (4.93 in.). However, when the opening does not reach 200 mm (7.87 in.), the power window continues to go down until the opening reaches 200 mm (7.87 in.) or until approximately 5 seconds elapse.

   4. While the power window is moving down, check that the door glass cannot be raised when the power window switch is used.

1. Check the basic operation.

   HINT:

   The catch protection function operates when the engine switch is on (IG), and when auto down and manual down are operated after the engine switch is turned off.

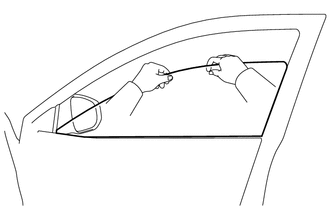

   Fig 2: Checking Catch Protection Function

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Fully close all door windows.
   2. While using auto down or manual down to open the window, grasp the upper edge of the door glass with one or two hands and check that the door glass operation stops.

      HINT:

      After the catch protection function operates when an auto down or manual down operation is performed, the catch protection function will not operate when the manual down operation is performed again within approximately 4 seconds.

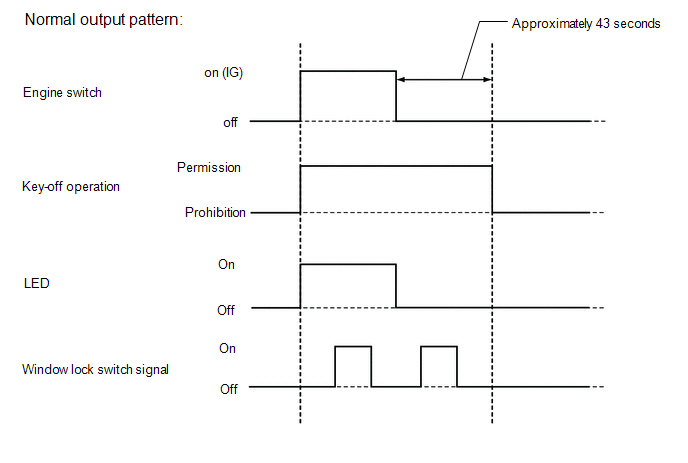

1. When the engine switch is turned from off to on (IG) with the connectors connected, check that the illumination (LED) on the switch portion of the power window regulator switch assembly turns on.
   Fig 3: Power Window Regulator Switch Led Illumination Pattern

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
