DTC B2782: Power Source Control ECU Malfunction [08/2015 - 08/2019]: Procedure
- INSPECT STEERING LOCK ECU
- Disconnect the G23 steering lock ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G23-1 (GND) - Body ground Always Below 1 Ω - Reconnect the G23 steering lock ECU connector.
- Turn the engine switch off, make sure that the steering is unlocked and move the shift lever to P.

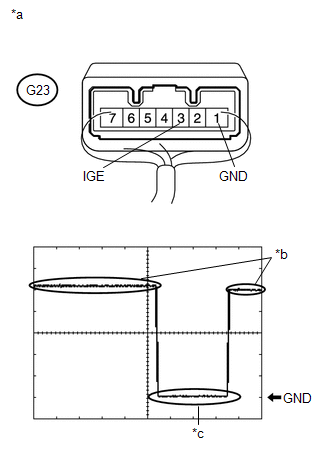

- Check the signal waveform according to the condition(s) in the table below.TEXT IN ILLUSTRATION
*a Component with harness connected
(Steering Lock ECU)*b Steering lock motor not operating *c Steering lock motor operating STANDARD FREQUENCYItem Content Tester Connection G23-3 (IGE) - G23-1 (GND) Tool Setting 2 V/DIV., 200 ms./DIV. Vehicle Condition Steering lock motor not operating → Steering lock motor operating → Steering lock motor not operating HINT:
- When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.
- In order to take measurements when the lock motor is operating, perform either of the following operations:
- To unlock the steering, carry the key and turn the engine switch on (ACC) or on (IG) while the shift lever is in P.
- To lock the steering, turn the engine switch off with the shift lever in P, and then open a door.
Result:
NG
See step 4
Result:
OK
See step 2
- CLEAR DTC AND DATA LIST MALFUNCTION RECORD
- Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
- Disconnect the cable from the negative (-) battery terminal, wait for 30 seconds or more, and then reconnect the cable to the negative (-) battery terminal to clear the record of malfunctions stored in Power Supply Open in the Data List.NOTE:
- w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.
Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal
Condition Waiting Time Vehicle enrolled in safety connect system 6 minutes Vehicle not enrolled in safety connect system 1 minute - When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2019] ).
- w/ Navigation System:
Result:
NEXT
See step 3
- READ VALUE USING TECHSTREAM (POWER SUPPLY OPEN)
- Perform the DTC output confirmation operation.
- Check if DTC B2782 is output (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
- Use the Data List to check if the steering lock control is functioning properly.SMART ACCESS
Tester Display Measurement Item/Range Normal Condition Diagnostic Note Power Supply Open Record of malfunction of signal sent to steering lock actuator assembly (motor) from power management control ECU (open circuit) (DTC B2782 stored)/OK or NG(Past) OK: No record of malfunction (open circuit)
NG(Past): Record of malfunction (open circuit) existsThis item records malfunctions in the circuit between the power management control ECU and steering lock actuator assembly (motor). RESULTResult Proceed to - B2782 is not output
- "OK" is displayed on the Techstream.
A - B2782 is output
- "NG(Past)" is displayed on the Techstream.
B
Result:
A
SYSTEM RETURNED TO NORMAL (DTC STORED DUE TO BAD CONNECTION, BUT SYSTEM RETURNED TO NORMAL BY RECONNECTING CONNECTOR)
Result:
B
REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
(Refer to DISASSEMBLY [08/2015 - 08/2019] )
- CHECK HARNESS AND CONNECTOR (POWER MANAGEMENT CONTROL ECU - STEERING LOCK ECU)
- Disconnect the G39 power management control ECU connector.
- Disconnect the G23 steering lock ECU connector.
- Check for deformation and corrosion of the connector case and terminals.
OK
There is no deformation or corrosion of the connector case or terminals.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G39-8 (SLR+) - G23-3 (IGE) Always Below 1 Ω G39-8 (SLR+) or G23-3 (IGE) - Body ground Always 10 kΩ or higher
Result:
OK
REPLACE POWER MANAGEMENT CONTROL ECU
(Refer to REMOVAL [08/2015 - 08/2019] )
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
