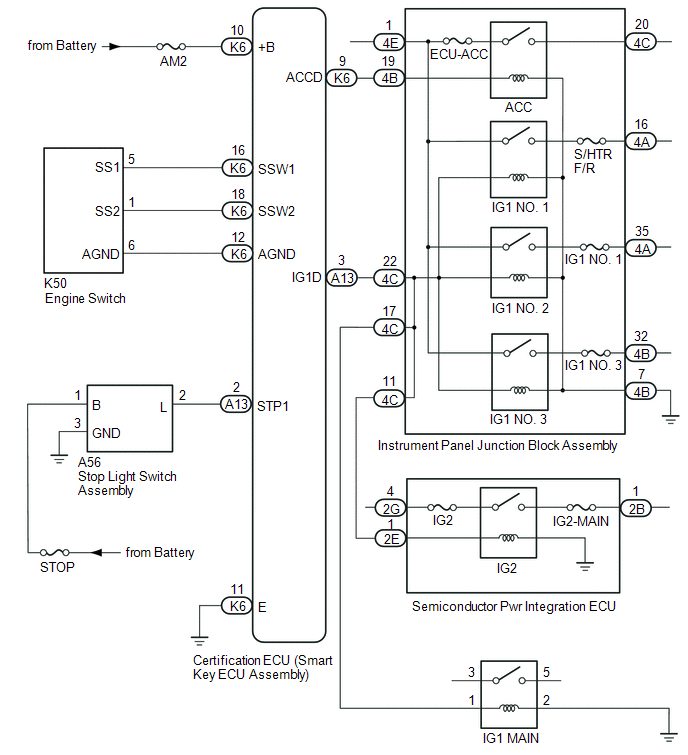

Power Source Mode does not Change to ON (IG and ACC) [08/2015 - 10/2017]: Wiring Diagram

GTY468412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
