Open in Bus 5 Main Bus Line [10/2016 - 10/2017]: Wiring Diagram

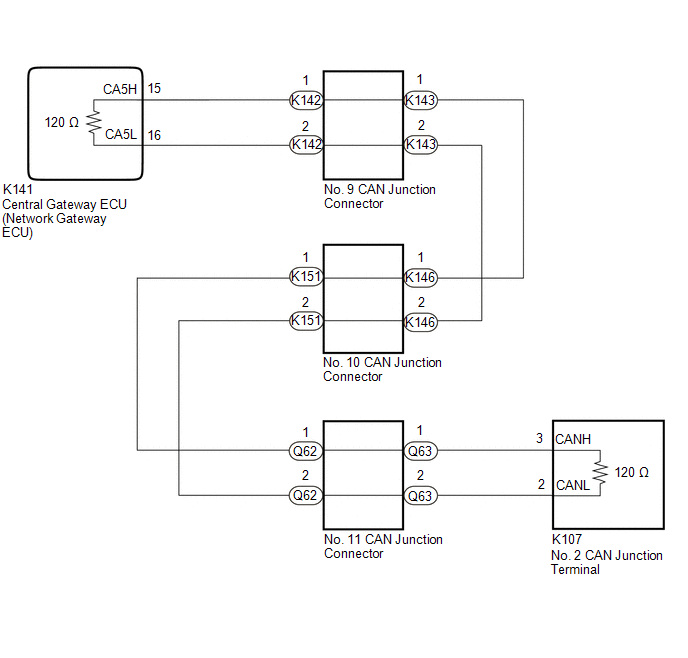

w/ No. 11 CAN Junction Connector

GTY820613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

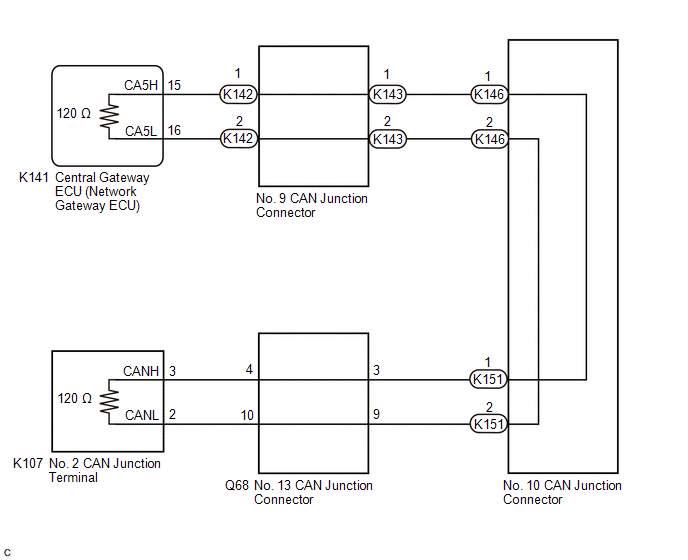

w/ No. 13 CAN Junction Connector

GTY795344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
