SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Entry Function)
>>
Front Passenger Side Door Entry Lock Function does not Operate [12/2017 - 10/2023]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Front Passenger Side Door Entry Lock Function does not Operate [12/2017 - 10/2023]: Wiring Diagram

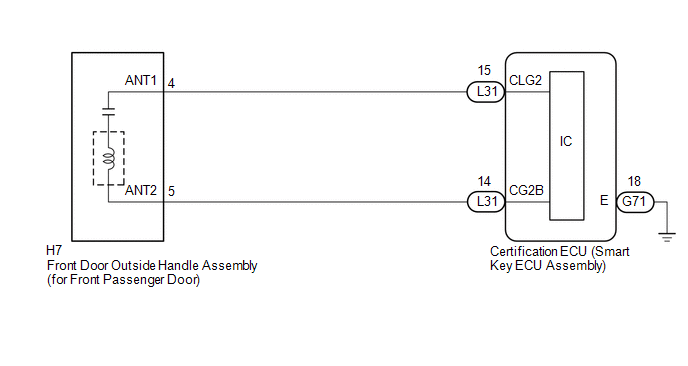

Fig 1: Front Passenger Side Door Entry Lock Function Does Not Operate [12/2017 - 10/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
