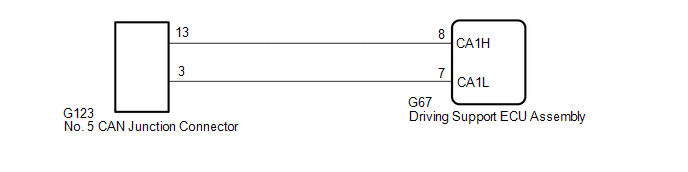

DTC U0130-87: Lost Communication with Steering Effort Control Module Missing Message; DTC U0134-87: Lost Communication with Power Steering Control Module Rear Missing Message [12/2017 - 09/2018]: Wiring Diagram

GTY813305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
