Automatic Light Control Sensor

AUTOMATIC LIGHT CONTROL SENSOR

Connector Condition Tester Connection Condition Specified Condition
Component with harness connected G16-4 (CLTS) - G16-2 (CLTE) Power switch on (IG), light control switch in AUTO position Correct waveform is as shown

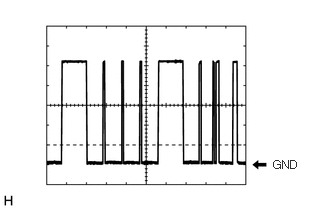

Fig 1: Waveform 1
GTY442965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The communication waveform changes according to the surrounding brightness.
