DTC B2410: Headlight Swivel ECU LH Communication; DTC B2411: Headlight Swivel ECU RH Communication; DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [12/2017 - 10/2020]: Wiring Diagram

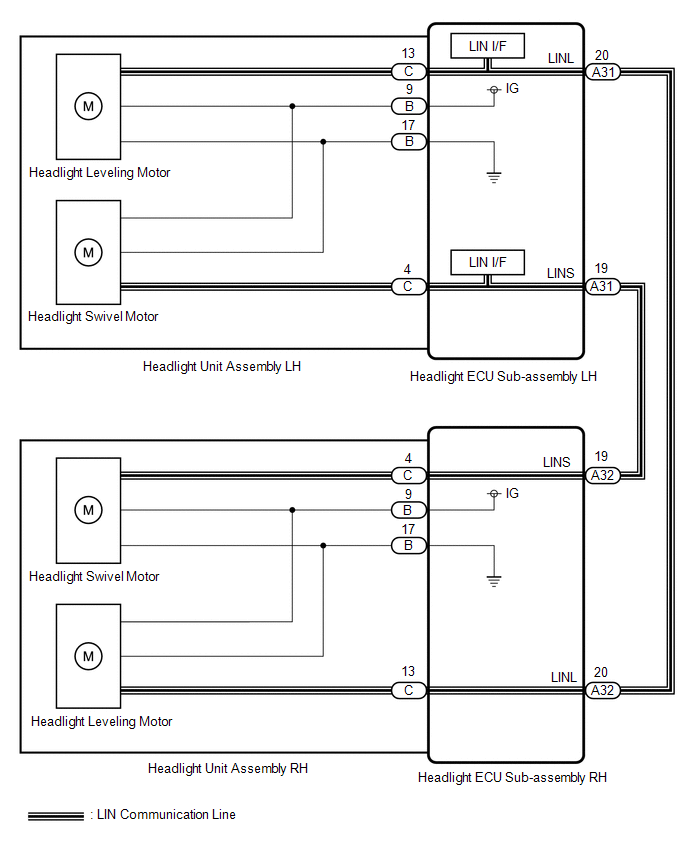

  1. w/ AFS (Front-lighting Adaptive System):
    GTY825828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

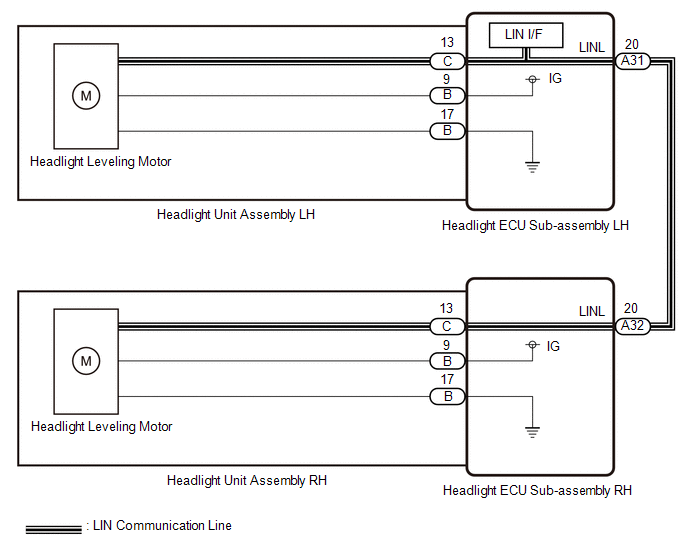

  2. w/o AFS (Front-lighting Adaptive System):
    GTY779862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
