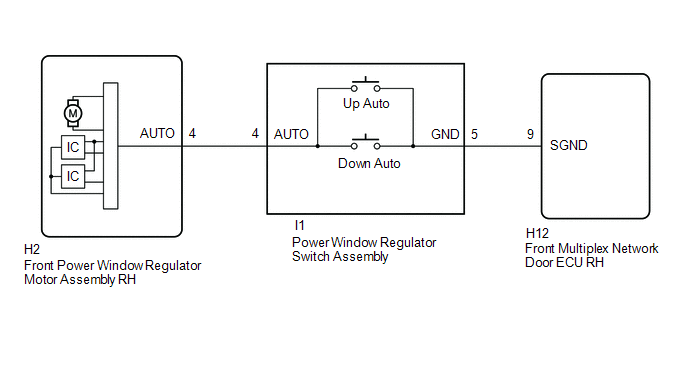

Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window Switch [12/2017 - 10/2023]: Wiring Diagram

GTY807548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
