DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction [12/2017 - 10/2020]: Procedure

  1. CHECK CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Check that the connectors are properly connected to the occupant detection ECU and front occupant classification sensor LH.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the occupant detection ECU and front occupant classification sensor LH.
    5. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT WIRE RH

    Result:

    OK

    See step  2

  2. CHECK FRONT SEAT WIRE RH
    1. Connect the cable to the negative (-) battery terminal.

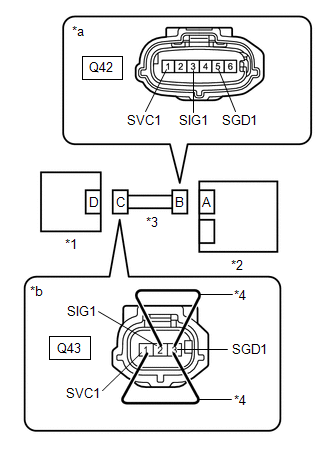

      GTY782320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Occupant Classification Sensor LH
      *2 Occupant Detection ECU
      *3 Front Seat Wire RH
      *4 Service Wire
      *a Front view of wire harness connector
      (to Occupant Detection ECU)
      *b Front view of wire harness connector
      (to Front Occupant Classification Sensor LH)
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      Q42-1 (SVC1) - Body ground Engine switch on (IG) Below 1 V
      Q42-3 (SIG1) - Body ground
      Q42-5 (SGD1) - Body ground
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal.
    6. Using service wires, connect terminals 1 (SVC) and 3 (SGD), and terminals 2 (SIG) and 3 (SGD) of connector C.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q42-1 (SVC1) - Q42-5 (SGD1) Always Below 1 Ω
      Q42-3 (SIG1) - Q42-5 (SGD1)
    8. Disconnect the service wires from connector C.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      Q42-1 (SVC1) - Q42-5 (SGD1) Always 1 MΩ or higher
      Q42-3 (SIG1) - Q42-5 (SGD1)
      Q42-1 (SVC1) - Q42-3 (SIG1)
      Q42-1 (SVC1) - Body ground
      Q42-3 (SIG1) - Body ground
      Q42-5 (SGD1) - Body ground

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FRONT SEAT WIRE RH

    Result:

    OK

    See step  3

  3. CHECK DTC
    1. Connect the connectors to the occupant detection ECU and front occupant classification sensor LH.
    2. Connect the cable to the negative (-) battery terminal.
    3. Clear the DTCs stored in the occupant detection ECU.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Clear DTCs

    4. Clear the DTCs stored in the airbag ECU assembly.

      Body Electrical > SRS Airbag > Clear DTCs

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 10 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Trouble Codes

      OK

      DTC B1780 is not output.

      HINT:

      Codes other than DTC B1780 may be output at this time, but they are not related to this check.

    8. Turn the engine switch off.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2017 - 09/2018]  , or refer to  HOW TO PROCEED WITH TROUBLESHOOTING [09/2018 - 10/2020]

    Result:

    NG

    See step  4

  4. CHECK OCCUPANT DETECTION ECU
    1. Disconnect the cable from the negative (-) battery terminal.
    2. Replace the occupant detection ECU with a new one.

      Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

      HINT:

      Perform the following inspection using known good parts from another vehicle if possible.

    3. Connect the cable to the negative (-) battery terminal.
    4. Clear the DTCs stored in the occupant detection ECU.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Clear DTCs

    5. Clear the DTCs stored in the airbag ECU assembly.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the engine switch off.
    7. Turn the engine switch on (IG), and wait for at least 10 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Trouble Codes

      OK

      DTC B1780 is not output.

      HINT:

      Codes other than DTC B1780 may be output at this time, but they are not related to this check.

    9. Turn the engine switch off.
    10. Disconnect the cable from the negative (-) battery terminal.
    11. Restore the occupant detection ECU that was installed for testing to its original location.

      Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  5

  5. REPLACE OCCUPANT DETECTION ECU
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Replace the occupant detection ECU with a new one.

      Refer to REMOVAL [12/2017 - 09/2018] , or refer to REMOVAL [09/2018 - 10/2020]

    4. Connect the cable to the negative (-) battery terminal.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  6

  6. PERFORM ZERO POINT CALIBRATION
    1. Using the Techstream, perform Zero Point Calibration.

      Refer to INITIALIZATION [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Utility

      Tester Display
      Zero Point Calibration

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    END (OCCUPANT DETECTION ECU WAS DEFECTIVE)

  7. REPLACE FRONT SEAT ADJUSTER ASSEMBLY RH
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
    3. Replace the front seat adjuster assembly RH with a new one.

      Refer to DISASSEMBLY [12/2017 - 10/2023]

    4. Connect the cable to the negative (-) battery terminal.

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  8

  8. PERFORM ZERO POINT CALIBRATION
    1. Using the Techstream, perform Zero Point Calibration.

      Refer to INITIALIZATION [12/2017 - 10/2023]

      Body Electrical > Occupant Detection > Utility

      Tester Display
      Zero Point Calibration

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    END (FRONT SEAT ADJUSTER ASSEMBLY RH WAS DEFECTIVE)
