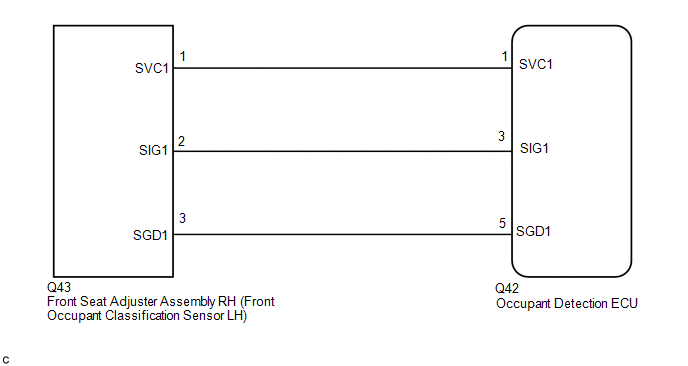

DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction [12/2017 - 10/2020]: Wiring Diagram

GTY803228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
