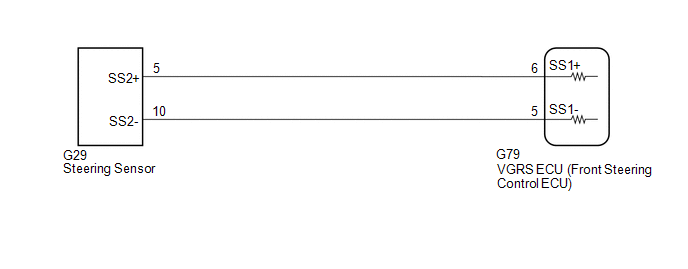

DTC C1595: Lost Communication with Steering Angle Sensor Module(SIL); DTC C15C4: Steering Signal Not Detected [12/2017 - 10/2023]: Wiring Diagram

GTY833341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
