Electronic A/T Shift Lever System (Aga0F) - Diagnostic Codes (2 Of 5)
>>
Electronic Shift Lever System
>>
DTC P176D-12: IG2 Signal (Gear Shift Control Module "A") Circuit Short to Battery [12/2017 - 10/2023]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

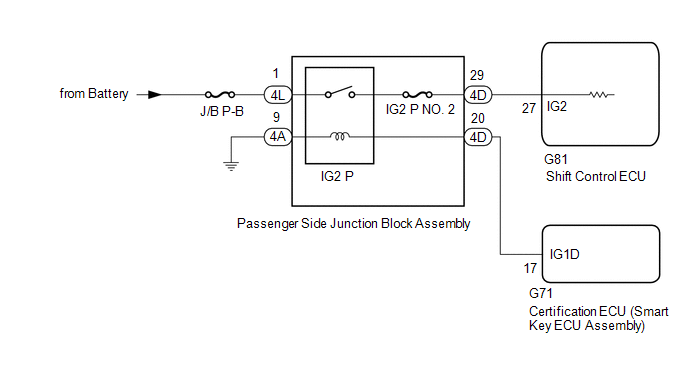

DTC P176D-12: IG2 Signal (Gear Shift Control Module "A") Circuit Short to Battery [12/2017 - 10/2023]: Wiring Diagram
