Installation [10/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TURN SIGNAL SWITCH

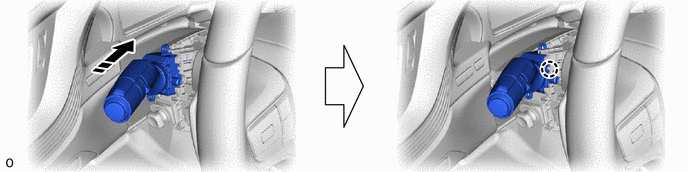

Align the connector of the turn signal switch with the connector of the steering switch housing and set the turn signal switch.

Push the turn signal switch to attach the claw to install it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

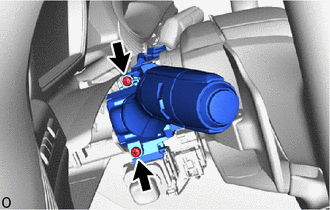

Install the 2 screws.

INSTALL UPPER STEERING COLUMN COVER
Refer to PROCEDURE - Step 2
INSTALL LOWER STEERING COLUMN COVER
Refer to PROCEDURE - Step 2
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM
Refer to CUSTOMIZE PARAMETERS [12/2017 - ]
