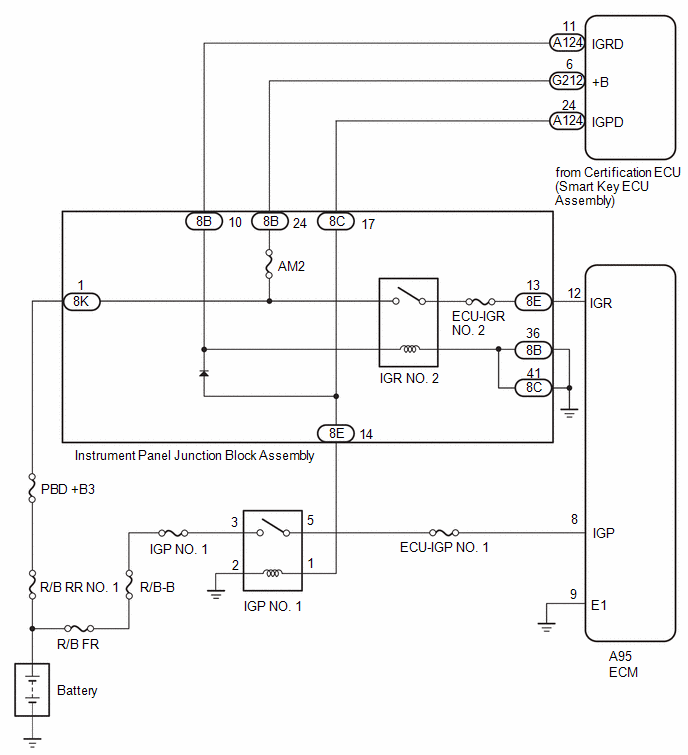

DTC P2533-14: Ignition Switch On/Start Position Circuit Low Circuit Short to Ground or Open [10/2023 - ]: Wiring Diagram

GTY1235633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
