Installation [09/2015 - ]: Procedure

CONNECT NO. 2 STEERING INTERMEDIATE SHAFT

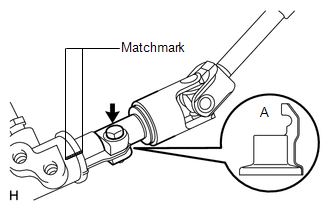

Align the part of the dust cover labeled A with the No. 2 steering intermediate shaft, and install the No. 2 steering intermediate shaft assembly to the steering link assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to damage the dust cover.

Install the bolt.
Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

INSTALL STEERING COLUMN HOLE COVER SUB-ASSEMBLY
1. Install the 4 bolts and nut.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  HINT:

  Install the steering intermediate shaft assembly from the inside of the vehicle.
2. Install the clamp to the steering column hole cover.
INSTALL STEERING ACTUATOR ASSEMBLY
Refer to INSTALLATION [09/2015 - ] )
INSTALL STEERING COLUMN ASSEMBLY
1. Install the steering column with the 4 nuts.
  Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY
Refer to PROCEDURE - Step 11 [09/2015 - 08/2020] Refer to PROCEDURE - Step 11 [08/2020 - ]
CONNECT WIRE HARNESS PROTECTOR AND WIRE HARNESS
1. Attach the 2 claws and 2 harness clamps and connect the wire harness protector and wire harness.
INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to INSTALLATION [09/2015 - ] )
INSTALL COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
1. Attach the 3 claws to install the combination switch assembly with spiral cable sub-assembly to the steering column assembly.
2. Connect connectors to the combination switch assembly with spiral cable sub-assembly.
INSTALL UPPER STEERING COLUMN COVER
1. Attach the 2 guide pins and claw.
2. Attach the 4 clips and 2 claws to install the upper steering column cover onto the meter hood spacer.
INSTALL LOWER STEERING COLUMN COVER
1. Attach the 2 claws to install the lower steering column cover.
  NOTE:
  Do not damage the tilt and telescopic switch.
2. Install the 3 screws.
ADJUST SPIRAL CABLE SUB-ASSEMBLY
Refer to PROCEDURE - Step 6
INSTALL STEERING WHEEL ASSEMBLY
Refer to INSTALLATION [09/2015 - ] )
CHECK FRONT WHEELS FACING STRAIGHT AHEAD
INSTALL FRONT WHEELS
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
- Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter. Refer to INITIALIZATION [09/2015 - 08/2019] Refer to INITIALIZATION [08/2019 - ] .
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION [09/2015 - 08/2019] Refer to INITIALIZATION [08/2019 - ] .
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM [09/2015 - 08/2020] Refer to DIAGNOSIS SYSTEM [08/2020 - ] )
PERFORM VARIABLE GEAR RATIO STEERING SYSTEM CALIBRATION
Refer to CALIBRATION [09/2015 - 08/2020] Refer to CALIBRATION [08/2020 - ] )
