Components [09/2015 - ]

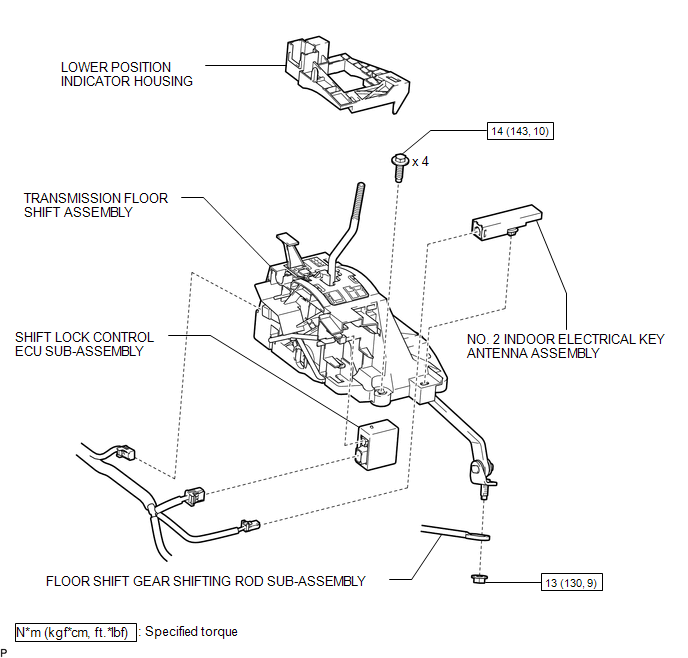

Fig 1: Shift Lever Replacement Components With Torque Specifications
GTY662322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
