System Diagram [09/2017 - 10/2019]

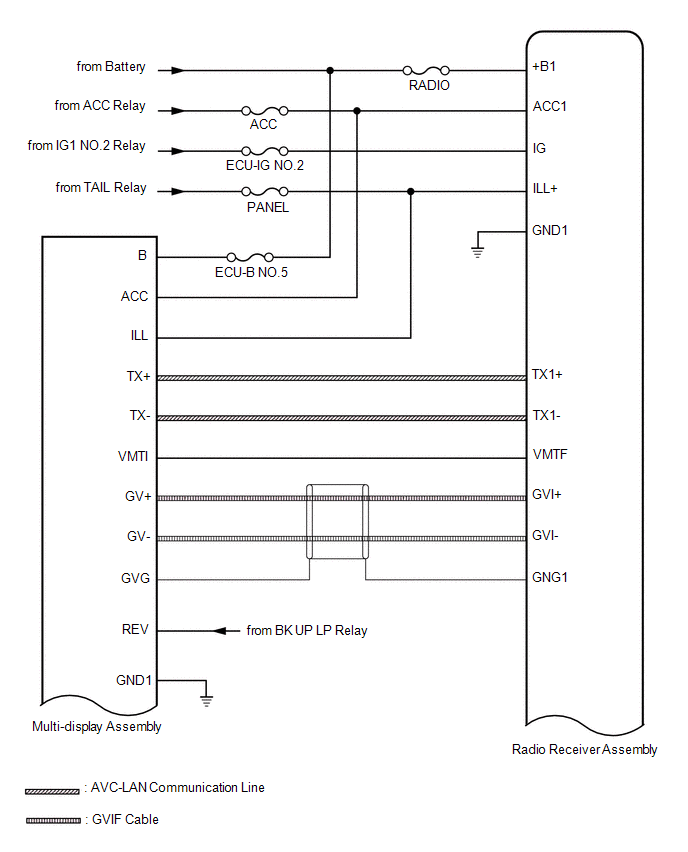

Fig 1: Audio/Video System Wiring Diagram (1 Of 10)
GTY823607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

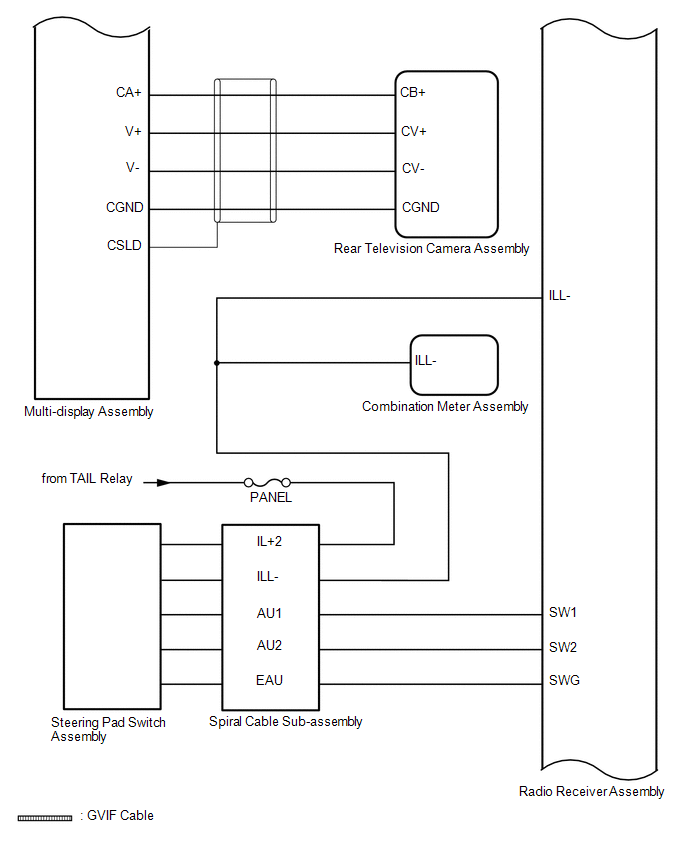

Fig 2: Audio/Video System Wiring Diagram (2 Of 10)
GTY960101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

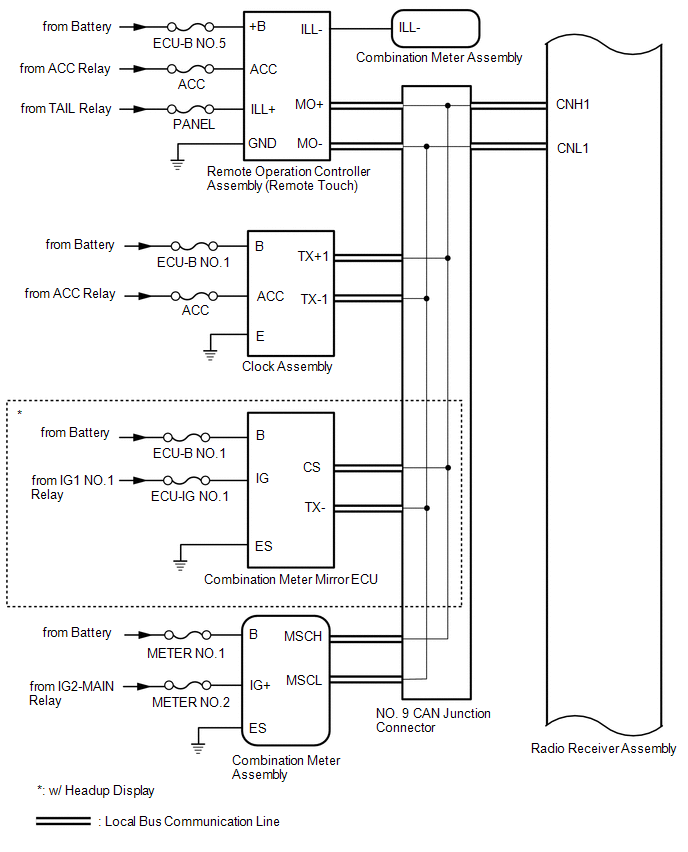

Fig 3: Audio/Video System Wiring Diagram (3 Of 10)
GTY959900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

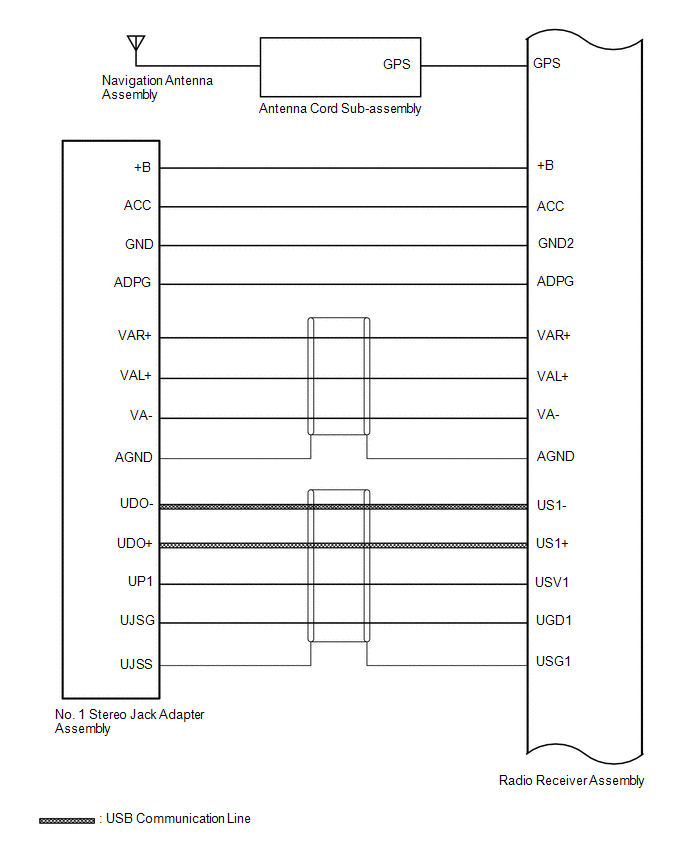

Fig 4: Audio/Video System Wiring Diagram (4 Of 10)
GTY781526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

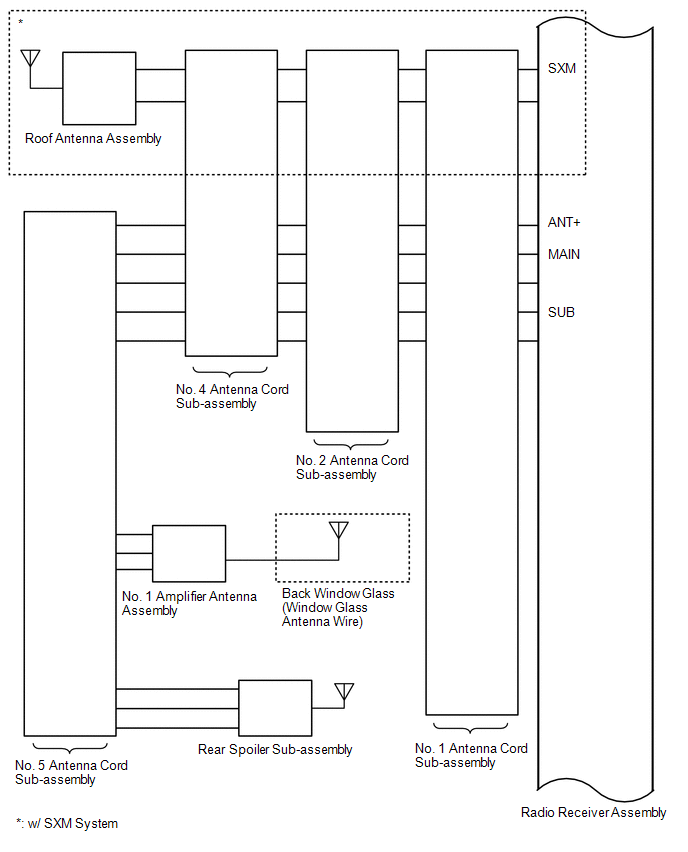

Fig 5: Audio/Video System Wiring Diagram (5 Of 10)
GTY804994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Audio/Video System Wiring Diagram (6 Of 10)
GTY800987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

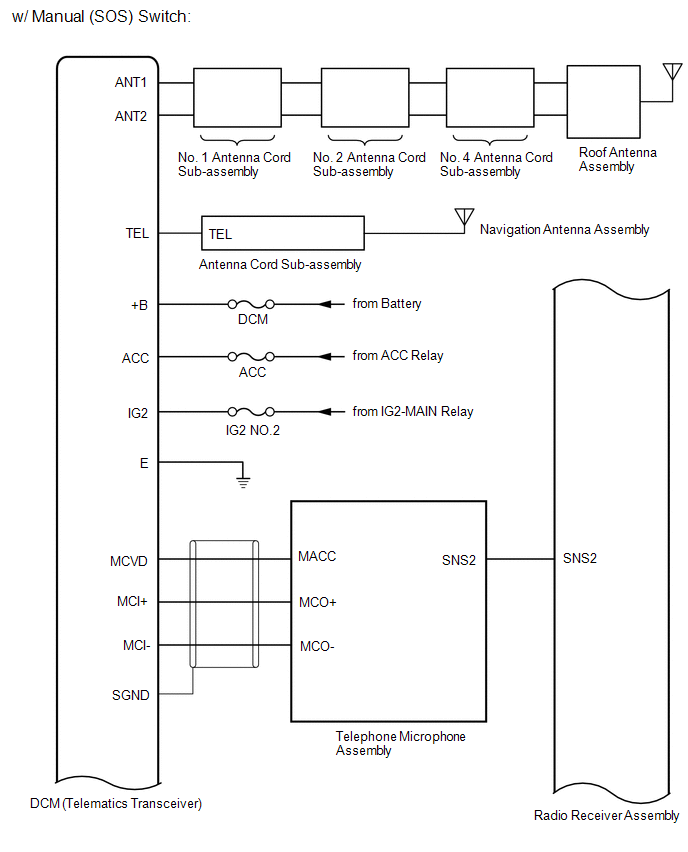

Fig 7: Audio/Video System Wiring Diagram (7 Of 10)
GTY808583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

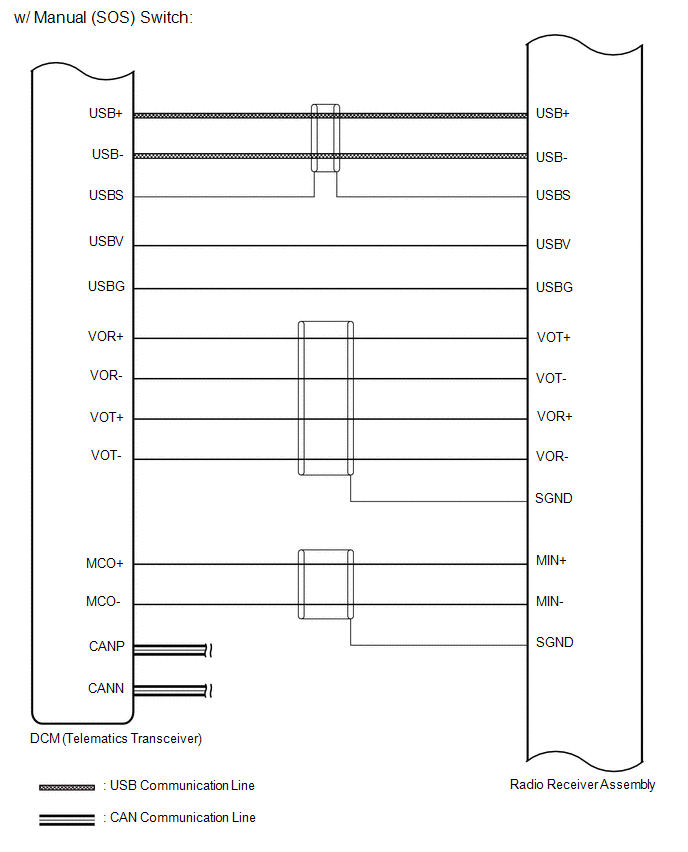

Fig 8: Audio/Video System Wiring Diagram (8 Of 10)
GTY788792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

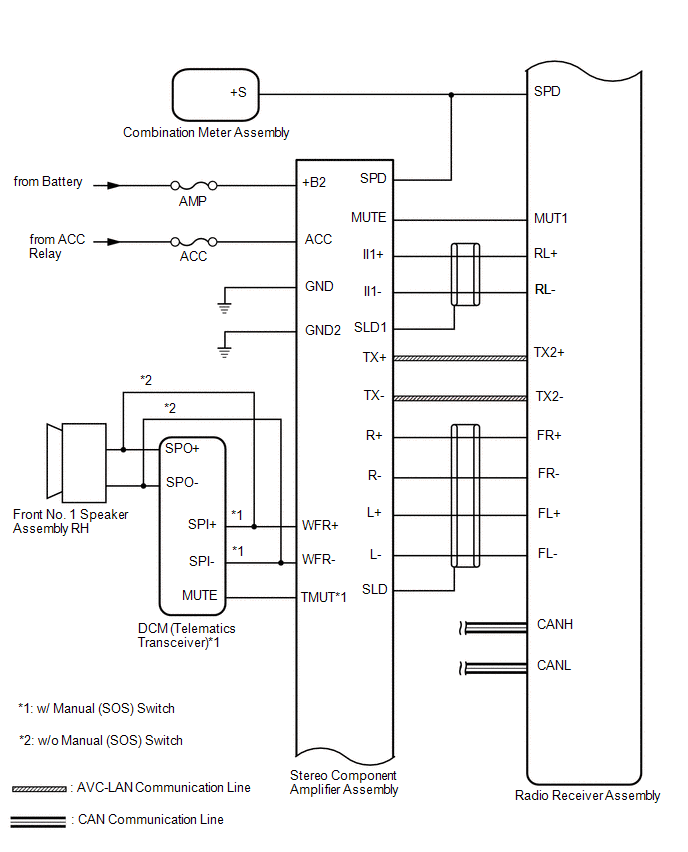

Fig 9: Audio/Video System Wiring Diagram (9 Of 10)
GTY798315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

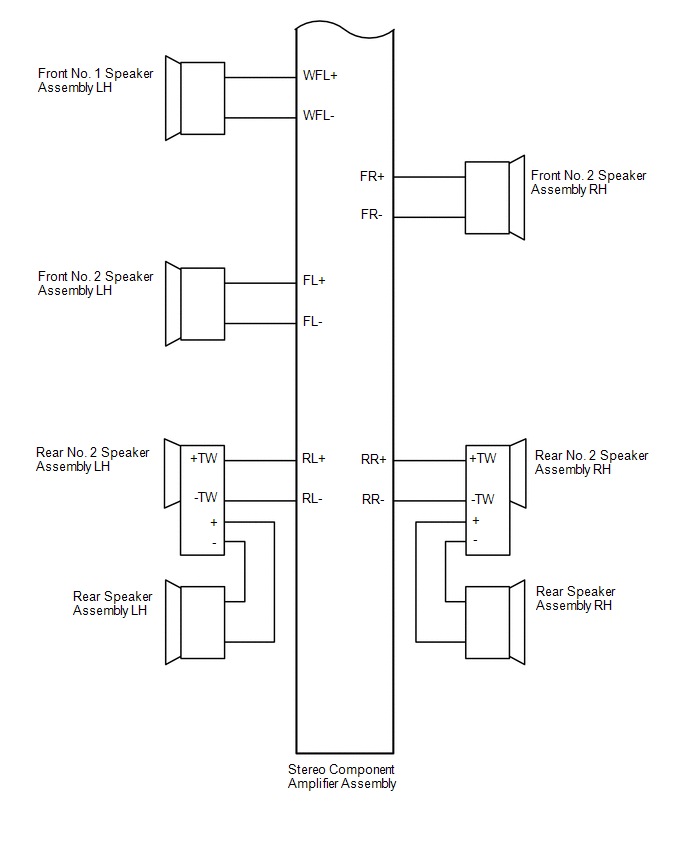

Fig 10: Audio/Video System Wiring Diagram (10 Of 10)
GTY805138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
