System Diagram [11/2017 - 10/2022]

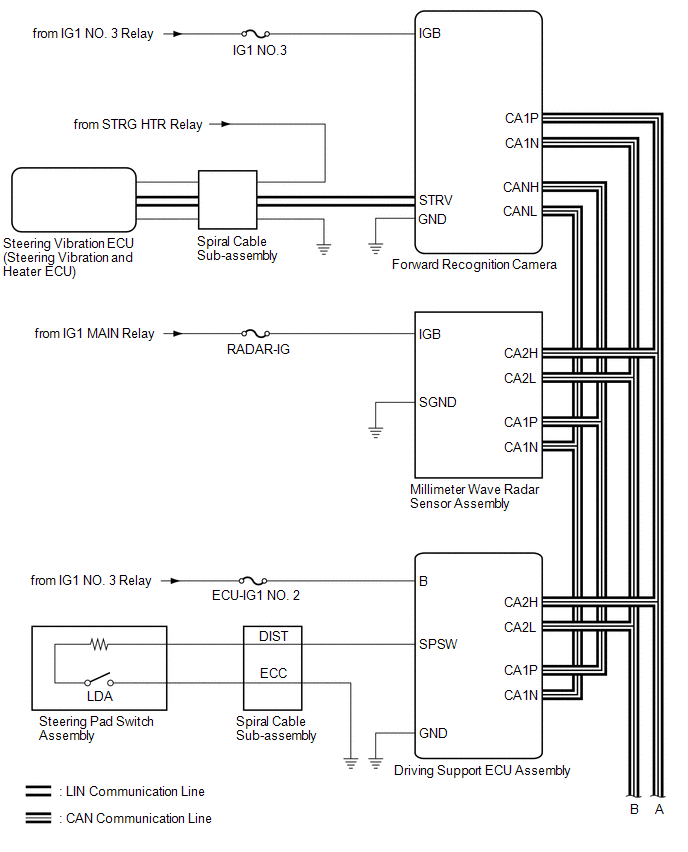

GTY829999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY803097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

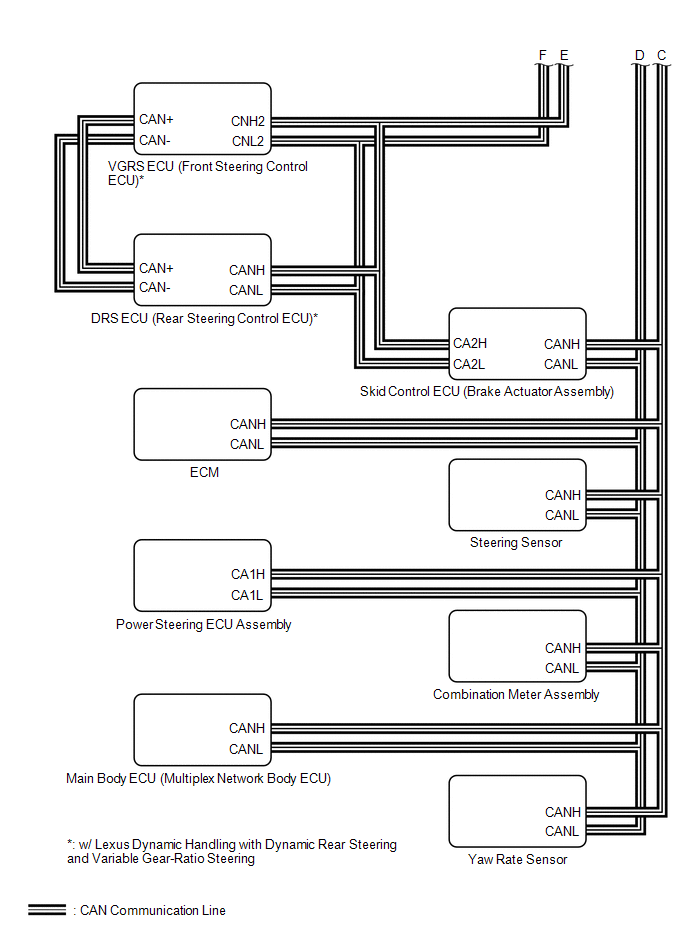

GTY825675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
