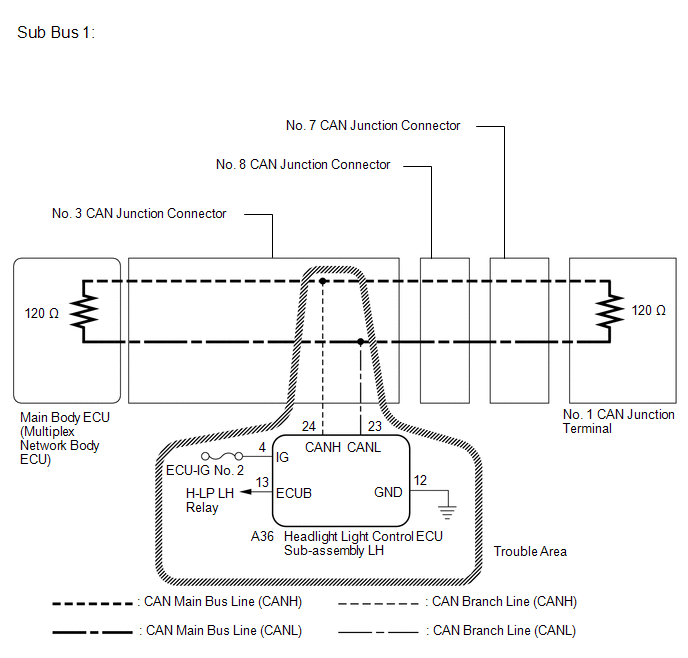

DTC U0182: Lost Communication with Lighting Control Module Front [09/2014 - 10/2015]: Wiring Diagram

GTY503269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
