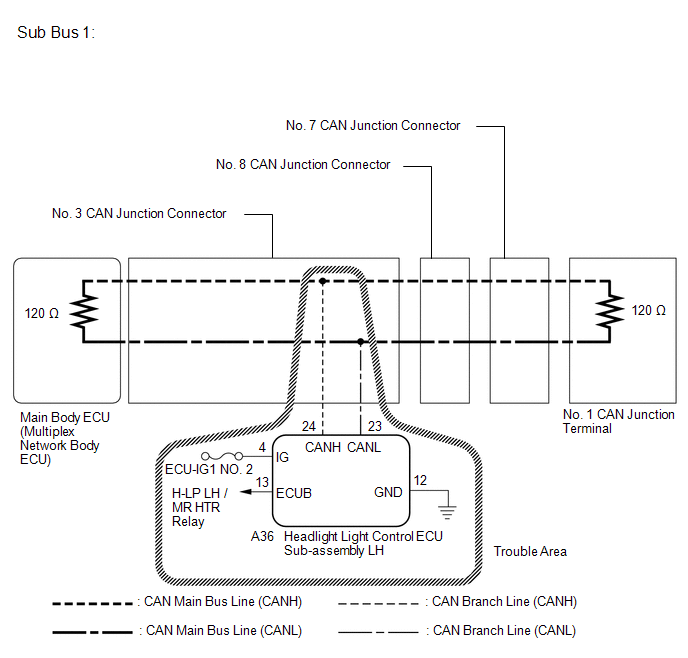

DTC U0182: Lost Communication with Lighting Control Module Front [10/2015 - 11/2017]: Wiring Diagram

GTY624352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
