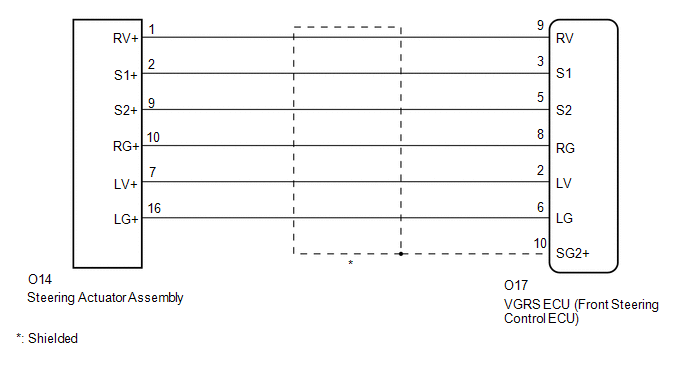

DTC C15A3/63: Motor Rotation Angle Not Detected; DTC C15C5/69: Motor Rotation Signal Not Detected [09/2014 - 09/2020]: Wiring Diagram

GTY505092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
