Charging System
>>
System Diagram [09/2015 - 12/2017]
>>
System Diagram [09/2015 - 12/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

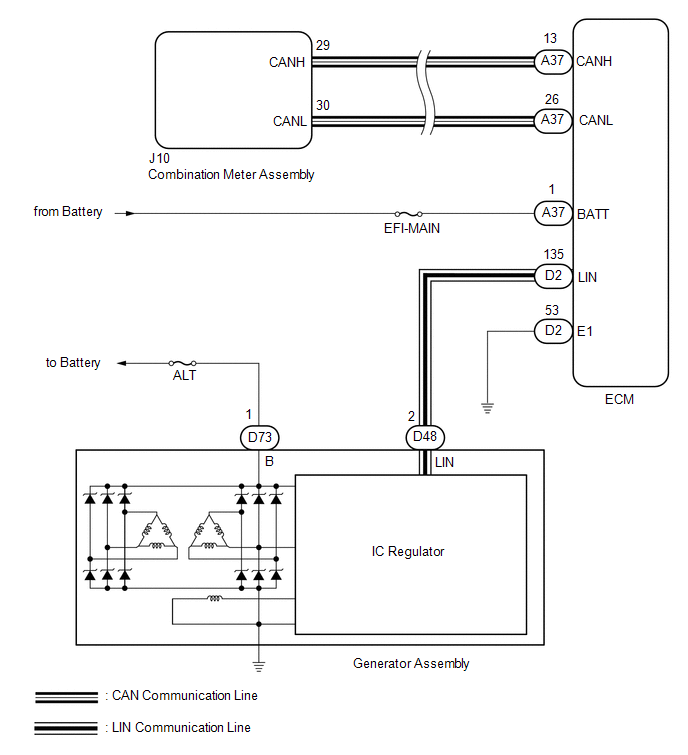

System Diagram [09/2015 - 12/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
