System Diagram [10/2015 - 08/2019]

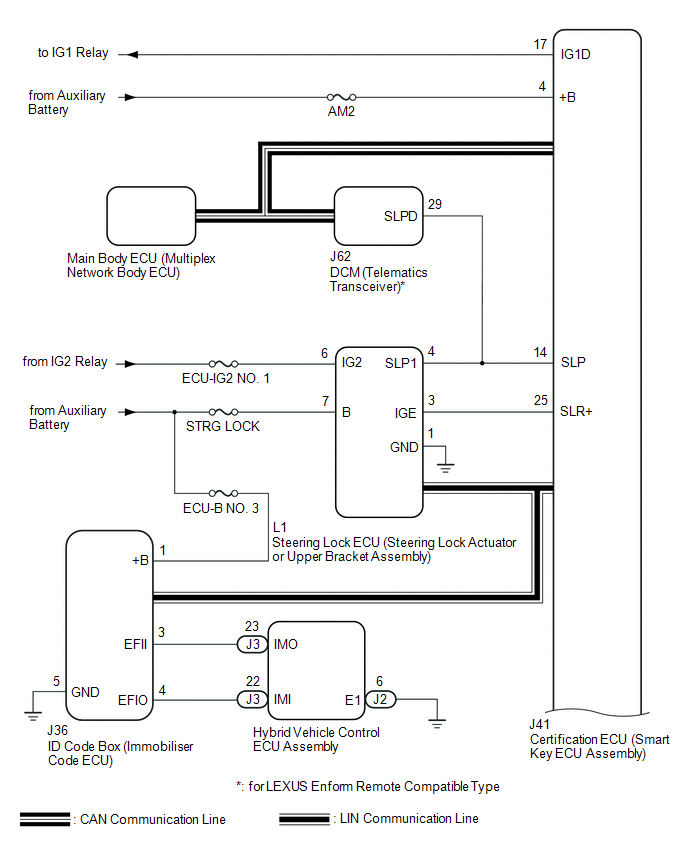

Fig 1: Immobilizer System Diagram [10/2015 - 08/2019] (1 Of 2)
GTY667886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Immobilizer System Wiring Diagram [10/2015 - 08/2019] (2 Of 2)
GTY661208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
